Chicago-Latrobe GREIN-44432 Chicago-Latrobe 44432 150L Jobber Length Drill Bit 1/2 in Drill - Fraction 0.5 in Drill - Decimal Inch

Product Description

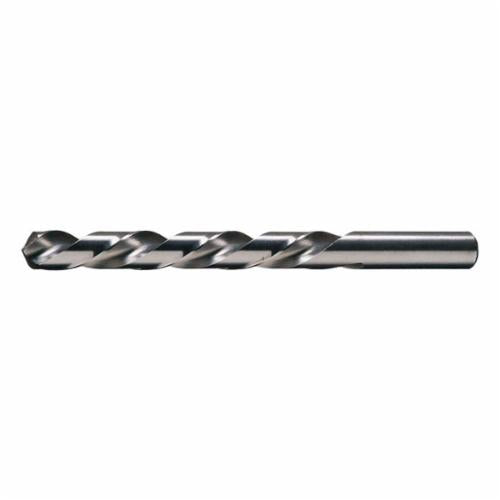

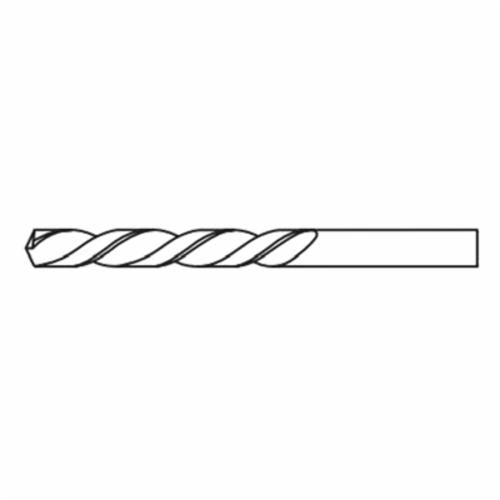

The Chicago-Latrobe GREIN-44432 is a Jobber Length Drill Bit designed for various drilling applications. This bit features a diameter of half an inch and an overall length of six inches. It is ideal for general purpose use, particularly with alloy steel, carbon steel, and cast iron materials. The bit has a left-hand cutting direction and is constructed from high-speed steel (HSS) for durability.

• Drill Diameter: 1/2 inches
• Cutting Depth: 5 times diameter
• 118-degree point for optimal drilling

Product Highlights

This drill bit is suitable for a range of drilling tasks, making it versatile for professionals.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-44432

Technical Specifications

• Applicable Materials: Alloy Steel, Carbon Steel and Cast Iron
• Cutting Depth: 5XD
• Cutting Direction: Left Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 4-1/2 inches
• Flute Type: Left Spiral
• Number of Flutes: 2
• Overall Length: 6 inches
• Point Type: Radial
• Series: 150L
• Shank Size: 1/2 inches diameter x 1-1/2 inches long
• Shank Type: Straight
• Drill Size - Fraction: 1/2 inches
• Drill Size - Decimal Inch: 0.5 inches
• Point Angle: 118 degrees
• Material: HSS
• Finish: Bright
• Through Coolant: No
