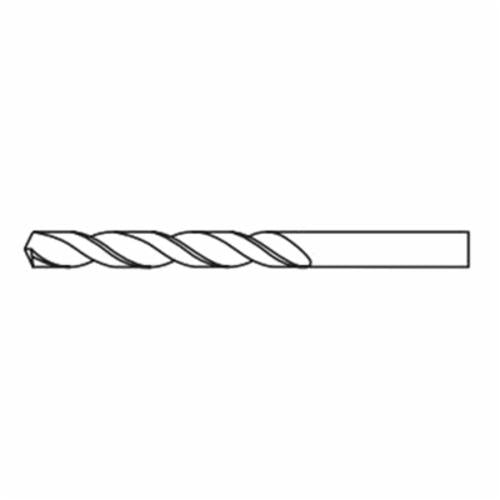

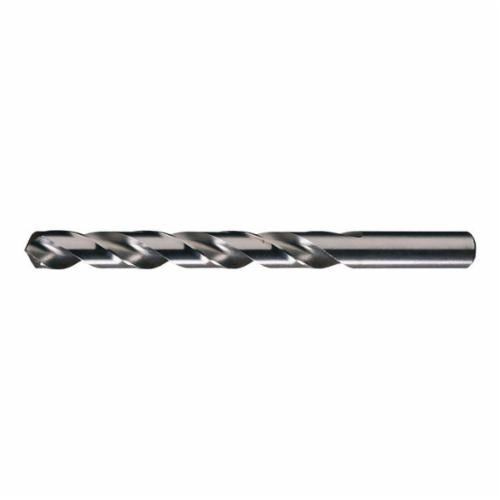

Chicago-Latrobe GREIN-44331CL 150D General Purpose Jobber Length Drill Bit #61 Drill - Wire 0.039 in

Product Description

The Chicago-Latrobe GREIN-44331CL is a jobber length drill bit designed for general purpose drilling. It features a series 150D design which includes a #61 wire drill that measures zero point zero three nine inches in decimal form. The overall length is one and five-eighths inches with a cutting depth of five times the diameter. This drill bit has two flutes with a right spiral design, an eleven sixteenths inch flute length, and a radial point type with a point angle of one hundred eighteen degrees. It is constructed from high-speed steel (HSS) for enhanced durability.

• General purpose drill bit for various materials
• Designed for non-ferrous metals
• Features a right hand cutting direction

Product Highlights

Durable and effective for drilling in a variety of conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-44331CL

Technical Specifications

• Applicable Materials: Non-Ferrous Metals
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 11/16 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 1-5/8 in
• Point Type: Radial
• Series: 150D
• Shank Size: 0.039 in Dia x 0.9375 in L
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Wire: #61
• Drill Size - Decimal Inch: 0.039 in
• Point Angle: 118 deg
• Finish: Bright
• Through Coolant: No
