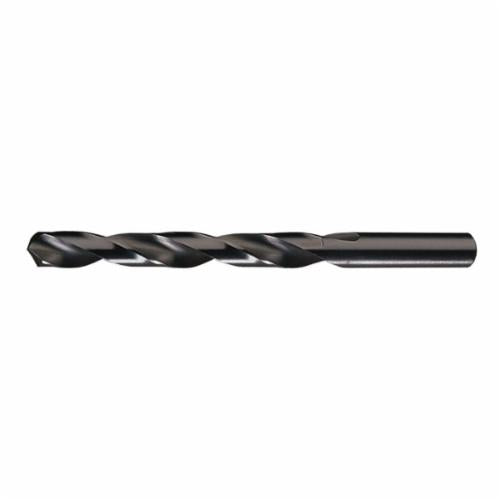

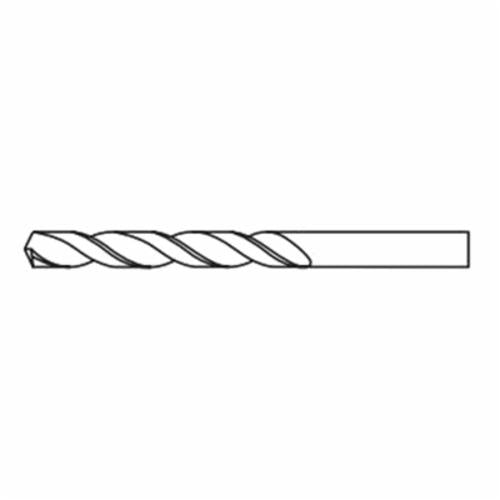

Chicago-Latrobe GREIN-44195CL 150 General Purpose Jobber Length Drill Bit Y 0.404 in

Product Description

The Chicago-Latrobe GREIN-44195CL is a general-purpose jobber length drill bit designed for efficiency and durability. With a diameter of zero point four zero four inches, this drill bit is suitable for various materials, including carbon steel and cast iron.

• Overall length of five and one-quarter inches
• Features a right-hand cutting direction and radial point
• Constructed with HSS and finished with black oxide

Product Highlights

This drill bit is ideal for drilling in multiple operating conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Series: 150

Technical Specifications

• Drill Diameter Measurement System: Imperial
• Drill Size - Letter: Y
• Drill Size - Decimal Inch: 0.404 in
• Overall Length: 5-1/4 in
• Flute Length: 3-7/8 in
• Flute Type: Right Spiral
• Number of Flutes: 2
• Cutting Depth: 5XD
• Point Type: Radial
• Point Angle: 118 deg
• Cutting Edge Material: HSS
• Cutting Direction: Right Hand
• Through Coolant: No
• Finish: Black Oxide
• Applicable Materials: Carbon Steel and Cast Iron
