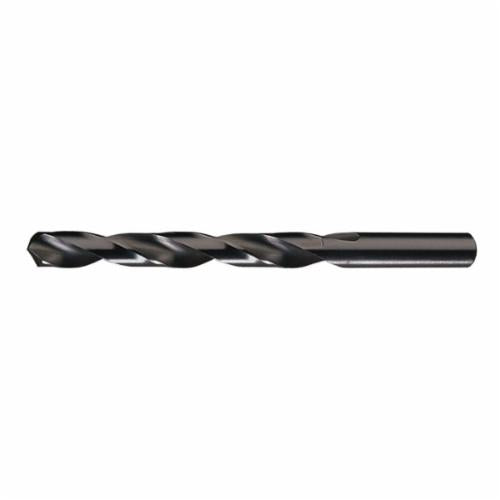

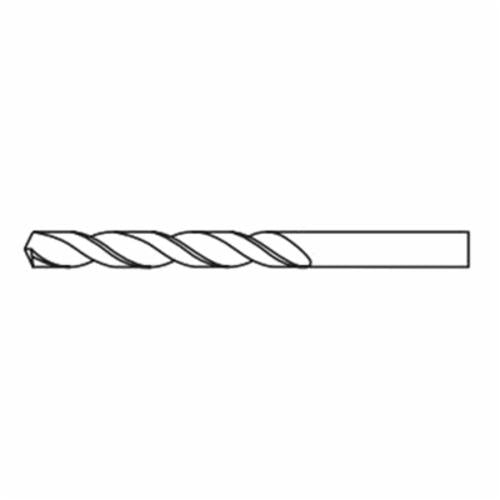

Chicago-Latrobe GREIN-44180 Chicago-Latrobe 44180 150 General Purpose Jobber Length Drill Bit J Drill - Letter 0.277 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe GREIN-44180 is a jobber length drill bit designed for general purpose use. This drill bit features a diameter of zero point two seven seven inches and is made from high-speed steel with a black oxide finish. The overall length is four and one eighth inches, with a flute length of two and seven eighths inches.

• General purpose geometry for versatility in various materials
• 118-degree point angle for effective cutting
• Compatible with carbon steel and cast iron

Product Highlights

This drill bit provides reliable performance across a wide range of operating conditions. It is suitable for drilling in both carbon steel and cast iron materials.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-44180

Technical Specifications

• Overall Length: 4-1/8 inches
• Flute Length: 2-7/8 inches
• Shank Size: 0.277 inches diameter x 1.25 inches length
• Number of Flutes: 2
• Flute Type: Right spiral
• Point Type: Radial
• Cutting Depth: 5XD
• Cutting Direction: Right hand
• Cutting Edge Material: HSS
• Finish: Black oxide
• Applicable Materials: Carbon steel and cast iron
• Drill Size - Letter: J
• Drill Size - Decimal Inch: 0.277 inches
• Point Angle: 118 degrees
• Through Coolant: No
