Chicago-Latrobe GREIN-44117 Jobber Length Drill Bit 150 #47 Drill - Wire 0.0785 in

Product Description

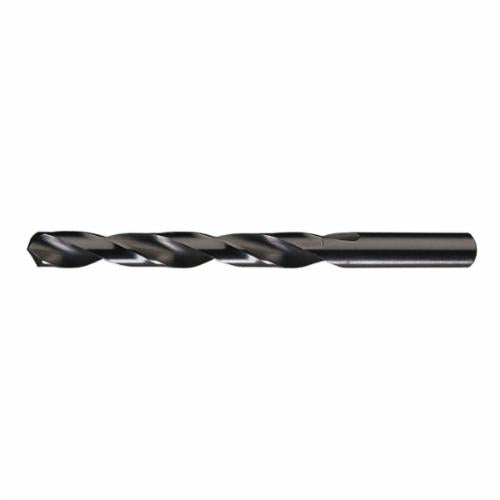

The Chicago-Latrobe GREIN-44117 is a jobber length drill bit designed for general purposes. This drill bit features a 0.0785 inch diameter and a #47 wire size. It is made from high-speed steel (HSS) and has a black oxide finish for added durability. The bit measures two inches in overall length with a cutting depth of five times the diameter. It has two flutes and a right-hand spiral for efficient chip removal.

• General purpose geometry for versatile drilling
• HSS cutting edge for increased hardness
• Suitable for use on carbon steel and cast iron

Product Highlights

The Chicago-Latrobe drill bit is ideal for a range of materials, including carbon steel and cast iron. Its design includes a radial point with a point angle of one hundred eighteen degrees, making it suitable for precise drilling tasks.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-44117

Technical Specifications

• Applicable Materials: Carbon Steel and Cast Iron
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 1 inch
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 2 inches
• Point Type: Radial
• Series: 150
• Shank Size: 0.0785 inch Dia x 1 inch L
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Wire: #47
• Drill Size - Decimal Inch: 0.0785 inch
• Point Angle: 118 degrees
• Material: HSS
• Finish: Black Oxide
• Through Coolant: No
