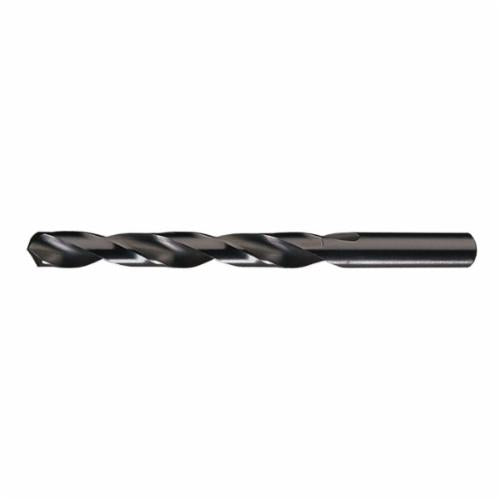

Chicago-Latrobe GREIN-44095 General Purpose Jobber Length Drill Bit #25 Drill - Wire 0.1495 in

Product Description

The Chicago-Latrobe GREIN-44095 is a general purpose jobber length drill bit designed for various drilling tasks. This drill bit features a #25 wire size and is made from high-speed steel (HSS) with a black oxide finish. At three inches in overall length, it provides a five times diameter cutting depth for efficient drilling.

• Drill diameter of 0.1495 inches
• Designed for cutting carbon steel and cast iron
• 118-degree point angle for effective penetration

Product Highlights

This drill bit is suitable for use in a variety of materials and conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-44095

Technical Specifications

• Overall Length: 3 inches
• Diameter: 0.1495 inches
• Flute Length: 1-7/8 inches
• Number of Flutes: 2
• Cutting Depth: 5XD
• Flute Type: Right Spiral
• Point Type: Radial
• Cutting Direction: Right Hand
• Drill Size - Wire: #25
• Drill Size - Decimal Inch: 0.1495 inches
• Drill Diameter Measurement System: Imperial
• Cutting Edge Material: HSS
• Finish: Black Oxide
• Through Coolant: No
