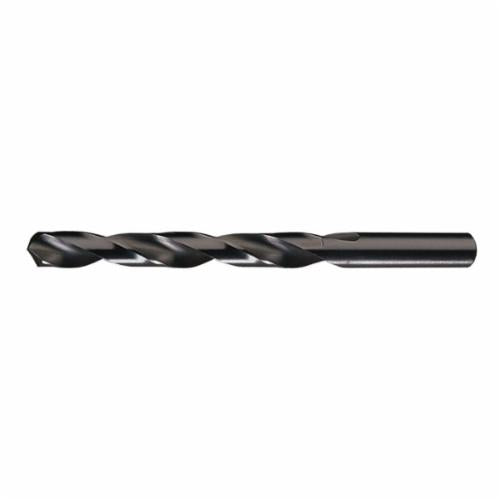

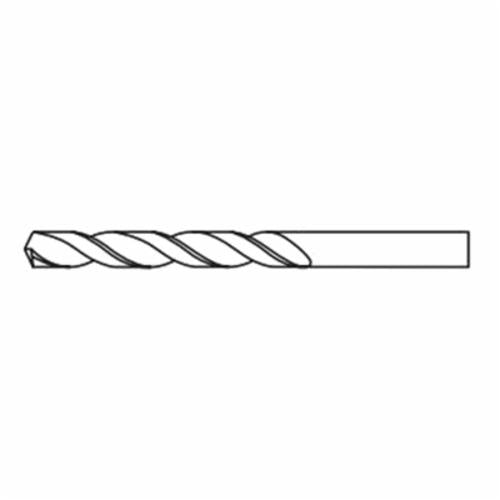

Chicago-Latrobe GREIN-44081 150 General Purpose Jobber Length Drill Bit #11 Drill - Wire

Product Description

The Chicago-Latrobe GREIN-44081 is a jobber length drill bit designed for various drilling applications. This bit measures zero point one nine one inches in diameter and features a right-hand cutting direction. It is made from HSS and finished with black oxide for durability and extended life.

• Overall length of three and one half inches.
• Two flutes for effective chip removal.
• Radial point type with a point angle of one hundred eighteen degrees.

Product Highlights

This drill bit is suitable for drilling into carbon steel and cast iron. The design offers general-purpose functionality across many operating conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-44081

Technical Specifications

• Drill Diameter Measurement System: Imperial
• Drill Size - Wire: #11
• Drill Size - Decimal Inch: 0.191 inches
• Cutting Depth: 5XD
• Overall Length: 3.5 inches
• Flute Length: 2-5/16 inches
• Shank Size: 0.191 inches Dia x 1.1875 inches L
• Point Type: Radial
• Cutting Direction: Right Hand
• Finish: Black Oxide
• Material: HSS
• Applicable Materials: Carbon Steel, Cast Iron
• Flute Type: Right Spiral
• Number of Flutes: 2
• Series: 150
• Through Coolant: No
