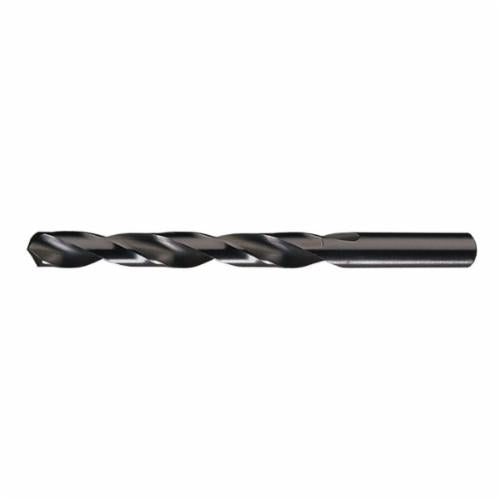

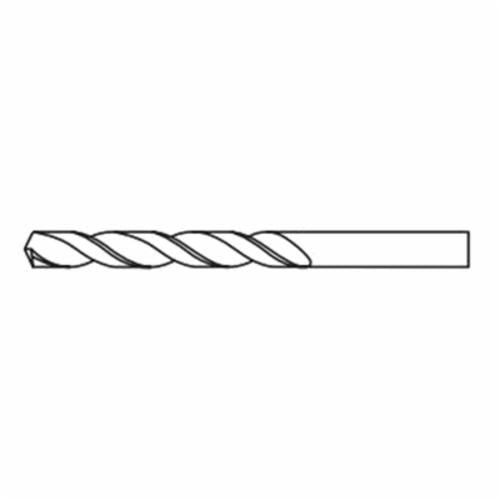

Chicago-Latrobe GREIN-44078CL 150 General Purpose Jobber Length Drill Bit, #8 Drill - Wire, 0.199 in Drill - Decimal Inch

Product Description

Chicago-Latrobe GREIN-44078CL is a jobber length drill bit designed for general purposes. It features a drill diameter of zero point one-nine-nine inches and has a length of three and five-eighths inches. This bit is made from high-speed steel (HSS) with a black oxide finish, increasing its durability and performance.

• General purpose geometry for various materials.
• Right hand cutting for efficiency.
• Applicable for drilling into carbon steel and cast iron.

Product Highlights

This drill bit is ideal for professionals seeking reliable performance in metalworking applications. Its design includes a right spiral flute and features a standard point angle of one hundred eighteen degrees.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-44078CL

Technical Specifications

• Series: 150
• Cutting Edge Material: HSS
• Drill Diameter: 0.199 in
• Point Angle: 118 deg
• Overall Length: 3-5/8 in
• Flute Length: 2-7/16 in
• Number of Flutes: 2
• Cutting Depth: 5XD
• Shank Size: 0.199 in Dia x 1.1875 in L
• Shank Type: Straight
• Cutting Direction: Right Hand
• Flute Type: Right Spiral
• Through Coolant: No
• Applicable Materials: Carbon Steel and Cast Iron
