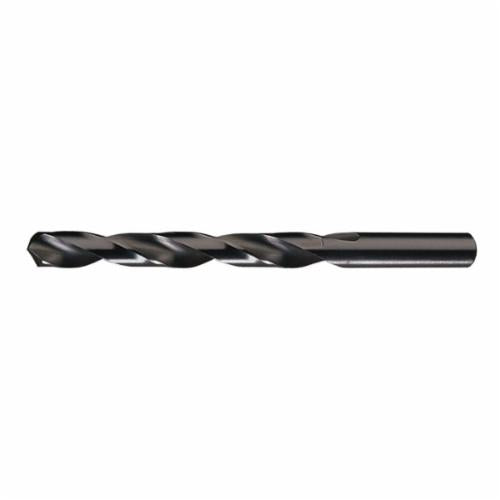

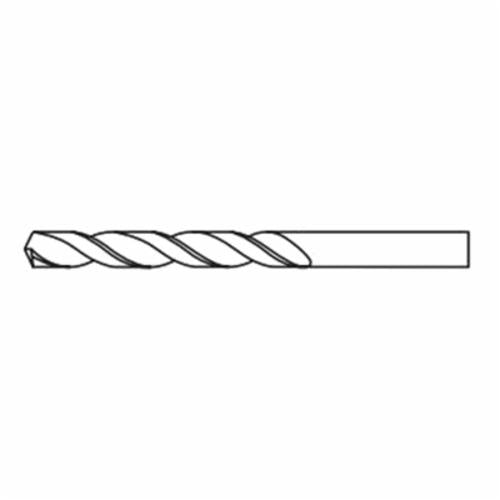

Chicago-Latrobe GREIN-44026 General Purpose Jobber Length Drill Bit 13/32 in

Product Description

The Chicago-Latrobe GREIN-44026 General Purpose Jobber Length Drill Bit comes with a diameter of thirteen thirty-seconds of an inch. This drill bit features a right-hand cutting direction designed for use in various materials, including carbon steel and cast iron. Its high-speed steel (HSS) construction and black oxide finish ensure durability and efficiency.

• Drill diameter: 13/32 inches
• Overall length: 5-1/4 inches
• Point angle: 118 degrees

Product Highlights

Ideal for general drilling needs, the Chicago-Latrobe drill bit performs well in diverse operating conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-44026

Technical Specifications

• Material: High-Speed Steel (HSS)
• Finish: Black Oxide
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Flute Type: Right Spiral
• Number of Flutes: 2
• Flute Length: 3-7/8 inches
• Drill Size - Fraction: 13/32 inches
• Drill Size - Decimal Inch: 0.4062 inches
• Point Type: Radial
• Shank Size: 13/32 in Diameter x 1-3/8 in Length
• Shank Type: Straight
• Series: 150
• Applicable Materials: Carbon Steel and Cast Iron
• Through Coolant: No
