Chicago-Latrobe 55254 | 103886428 | 11/32 | Taper Length | Replacement MPN

Product Description

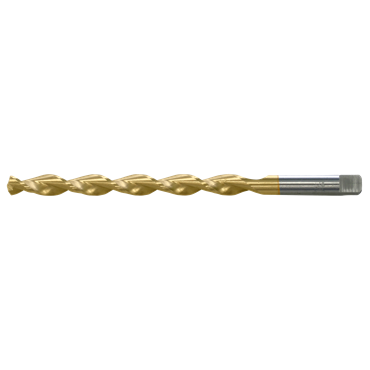

The Chicago-Latrobe 55254 is a high-speed steel drill bit designed for precision. It features an 11/32 inch diameter and a total length of six and a half inches. The TiN coating enhances performance for drilling operations in various materials.

• Diameter: 11/32 inch
• Overall Length: 6.5 inches
• Material: HSS with TiN coating

Product Highlights

This drill bit is ideal for drilling holes with accuracy and efficiency. It is suitable for applications in construction, woodworking, and more.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 55254

Technical Specifications

• Shank End Feature Length: 0.375 inches
• Drill Style: Taper Length
• Shank End Feature: Tang
• Diameter - Decimal: 0.34375 inches
• Shank Size: 0.3438 inches
• Coating: TiN
• Flute Length - Metric: 133.35 mm
• Material: HSS
• Point Angle: 135 degrees
• Overall Length: 6.5 inches
• Shank Length: 1.25 inches
• Shank Size - Metric: 8.73 mm
• Shank Type: Straight
• Flute Length: 5.25 inches
• Shank Length - Metric: 31.75 mm
• No. of Flutes: 2
• Diameter - Fraction: 11/32 inch
• Weight: 0.8 lbs
• EAN or UPC: 662355552544
