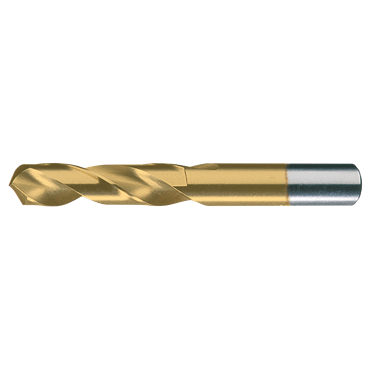

Chicago-Latrobe 55099 7/64 in HSS Screw Machine Drill Bit

Product Description

The Chicago-Latrobe 55099 is a high-speed steel drill bit designed for precision in drilling. With a diameter of seven sixty-fourths of an inch and an overall length of one point eight one two five inches, this drill bit is essential for various tasks in metalworking and machining. The high-speed steel material provides durability and efficiency during use.

• Diameter: 7/64 inches
• Overall Length: 1.8125 inches
• Point Angle: 118 degrees

Product Highlights

This drill bit is designed with a spiral flute type for efficient chip removal, ensuring smooth cutting action. It features a straight shank type for compatibility with standard chuck sizes, making it versatile for various drilling applications.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 55099

Technical Specifications

• Material: HSS
• Coating: TiN
• Shank Length: 1 inch
• Shank Size: 0.1094 inches
• Flute Length: 0.8125 inches
• No. of Flutes: 2
• Diameter - Decimal: 0.109375 inches
• Shank Size - Metric: 2.78 mm
