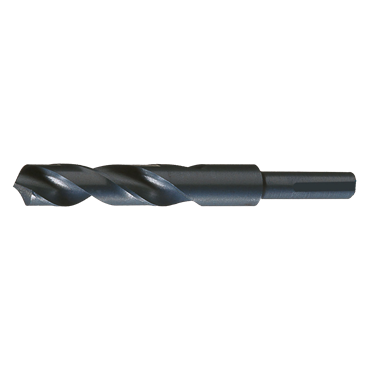

Chicago-Latrobe 52452 13/16 in Diameter Drill Bit

Product Description

The Chicago-Latrobe 52452 is a drill bit designed for various applications. It has a diameter of thirteen sixteenths of an inch. The drill bit is made from high speed steel, featuring a steam oxide coating for enhanced durability. It has a point angle of 118 degrees and a spiral flute design. This drill bit is classified as a Silver & Deming type and has a reduced shank with three flats.

• Diameter of thirteen sixteenths of an inch
• Constructed from high speed steel (HSS)
• Features a 118-degree point angle and spiral flute

Product Highlights

This drill bit is suitable for use in alloy and carbon steel, cast iron, and wood. It is ideal for both professional and home use.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Item Type: Drill Bit

Technical Specifications

• Shank Neck Diameter: 0.7685 in
• Shank Length: 2.25 in
• Overall Length: 6 in
• Diameter - Decimal: 0.8125 in
• No. of Flutes: 2
• Flute Length: 3.125 in
• Material: HSS
• Drill Style: Silver & Deming
• Point Type: Split point
• Maximum Drilling Depth: 3.25 in
• Spiral Direction: Right Hand
• Drill Bit Grouping: Drill Bit
• Material Grade: General Purpose
• Measurement System: Fractional Inch
