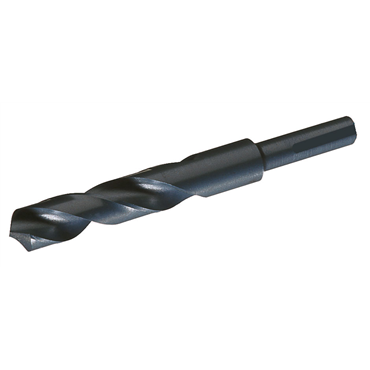

Chicago-Latrobe 52436 9/16 in Diameter Drill Bit 6 in Overall Length 118 Degree Point Angle

Product Description

The Chicago-Latrobe 52436 is a drill bit with a diameter of 9/16 inches and an overall length of 6 inches. It features a 118-degree point angle designed for precision drilling. Manufactured from high-speed steel (HSS), this drill bit provides excellent durability and performance.

• Diameter: 9/16 inches
• Length: 6 inches
• Material: High-Speed Steel (HSS)

Product Highlights

This drill bit is suitable for various applications including drilling in steel, cast iron, and wood due to its reliable spiral flute design.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Application: For Alloy and Carbon Steel, Cast Iron, and Wood

Technical Specifications

• No. of Flutes: 2
• Flute Length: 3.125 inches
• Point Angle: 118 degrees
• Shank Size: 0.5 inches
• Coating: Steam Oxide
• Shank Diameter: 1/2 inches
• Overall Length: 6 inches
• Direction of Rotation: Right Hand
• Drill Size: 9/16 inches
• Drill Bit Size: 9/16 in
• Maximum Drilling Depth: 2 1/4 inches
