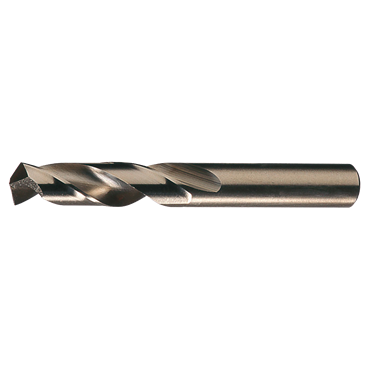

Chicago-Latrobe 50846 Q Cobalt Straw Finish Stub Drill

Product Description

The Chicago-Latrobe 50846 is a Q diameter stub drill designed for efficient performance. With a total length of three inches, this drill features a straight shank type for easy handling and installation. Made from HSS-CO 8% (M42) material, it provides durability suited for demanding applications. This drill is ideal for screw machine work due to its effective spiral flute type and precision point angle.

• Diameter: 0.332 inches
• Overall length: 3 inches
• Material: HSS-CO 8% (M42)

Product Highlights

The Chicago-Latrobe drill features a 135-degree point angle and is made for effective cutting in various materials. It combines heavy-duty geometry with a straw finish for enhanced performance.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Minimum Order Quantity: 6

Technical Specifications

• Shank Length: 1.3125 inches
• Flute Length: 1.6875 inches
• No. of Flutes: 2
• Drill Style: Screw Machine
• Shank Size: 0.332 inches
• Coating: Straw
• Point Angle: 135 degrees
• Diameter - Wire: Q
