Chicago-Latrobe 50844 | 103879841 | O Tip Size | 2.9375 in Overall Length | 135 Degree Point Angle

Product Description

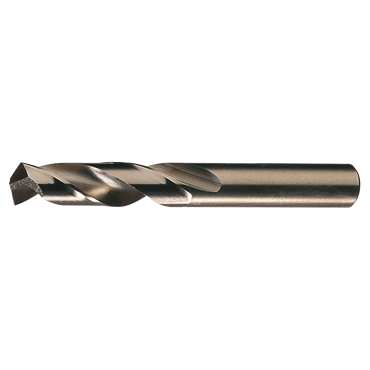

The Chicago-Latrobe 50844 is a screw machine drill bit designed for precision drilling. It features an O tip size and is made from high-speed steel with an HSS-CO 8% (M42) material. This drill bit has an overall length of two point nine three seven five inches and a flute length of one point six eight seven five inches.

• Flute length of one point six eight seven five inches
• Overall length of two point nine three seven five inches
• 135 degree point angle for improved drilling

Product Highlights

Designed for use in hand or machine applications, this drill bit is ideal for tougher materials. It offers consistent performance with a straw coating to reduce wear.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Part Number: 50844

Technical Specifications

• Diameter: 0.316 in
• Shank Type: Straight
• Point Angle: 135 degree
• No. of Flutes: 2
• Weight: 0.3 LB
• Coating: Straw
• Material: HSS-CO 8% (M42)
• Flute Length: 1.6875 in
• Shank Size: 0.316 in
• Overall Length: 2.9375 in
