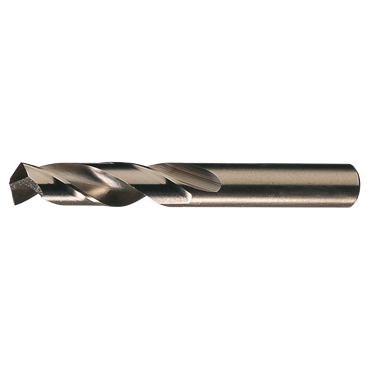

Chicago-Latrobe 50822 Heavy-Duty Cobalt Screw Machine Drill 25/64 in Tip Size

Product Description

The Chicago-Latrobe 50822 is a heavy-duty cobalt screw machine drill designed for precision drilling tasks. Made from high-speed steel with 8% cobalt content, this drill bit is ideal for use in demanding applications. The drill features a 135-degree split point that enhances centering and reduces thrust for easier penetration.

• Diameter: 25/64 inches
• Overall Length: 3.25 inches
• Flute Length: 1.875 inches

Product Highlights

This drill provides superior rigidity and minimizes deflection during heavy feed rates. It is perfect for both hand and machine drilling.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 50822

Technical Specifications

• Diameter - Fraction: 25/64 inches
• Diameter - Decimal: 0.390625 inches
• Length: 3.25 inches
• Flute Length: 1.875 inches
• Shank Type: Straight
• Point Angle: 135 degrees
• No. of Flutes: 2
• Material: HSS-CO 8% (M42)
