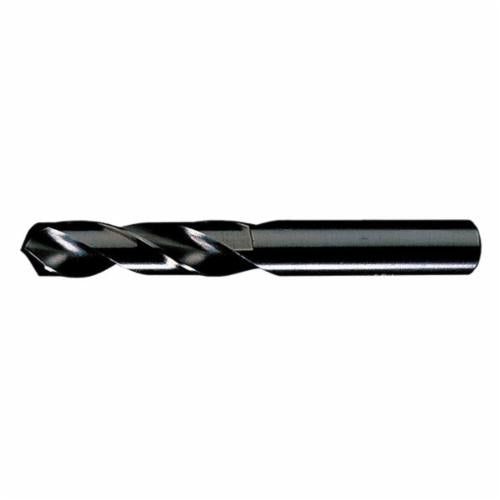

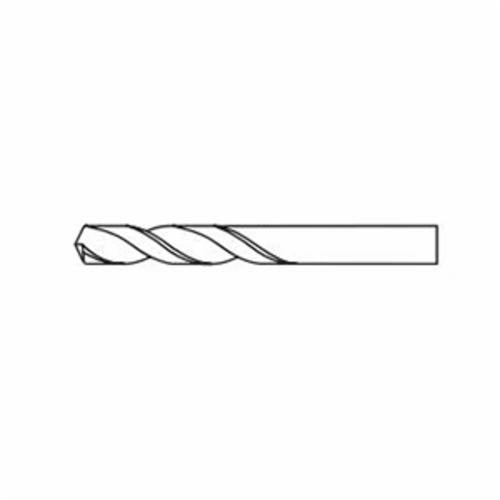

Chicago-Latrobe 49411 159 Heavy Duty Screw Machine Drill, #41 Drill - Wire, 0.096 in Drill - Decimal Inch, HSS, Black Steam Oxide

Product Description

The Chicago-Latrobe 49411 is a heavy-duty screw machine drill designed for efficiency and precision. This drill features a #41 wire size and is ideal for metalworking tasks. Its design allows for drilling through tough materials like alloy steel, carbon steel, cast iron, and tool steel.

• Drill Size: #41 (0.096 in)
• Overall Length: 1-13/16 inches
• Flute Type: Right Spiral with two flutes

Product Highlights

This drill combines a right-hand cutting direction with a HSS cutting edge, providing a strong and reliable tool for various applications. The 135-degree split point ensures easier penetration and self-centering for accuracy.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 49411

Technical Specifications

• Type: Heavy Duty
• Flute Type: Right Spiral
• Drill Diameter Measurement System: Imperial
• Number of Flutes: 2
• Cutting Edge Material: HSS
• Point Angle: 135 degrees
• Shank Type: Straight
• Point Type: Split
• Shank Size: 0.096 in Dia x 1 in L
• Cutting Direction: Right Hand
• Overall Length: 1-13/16 in
• Series: 159
• Flute Length: 13/16 in
• Cutting Depth: 3XD
• Drill Size - Wire: #41
• Drill Size - Decimal Inch: 0.096 in
• Material: HSS
• Finish: Black Steam Oxide
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, and Tool Steel
