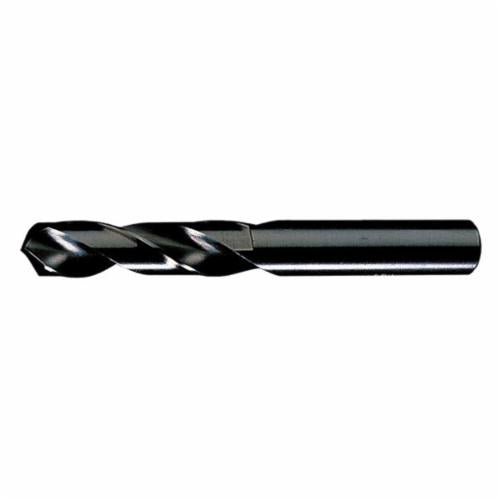

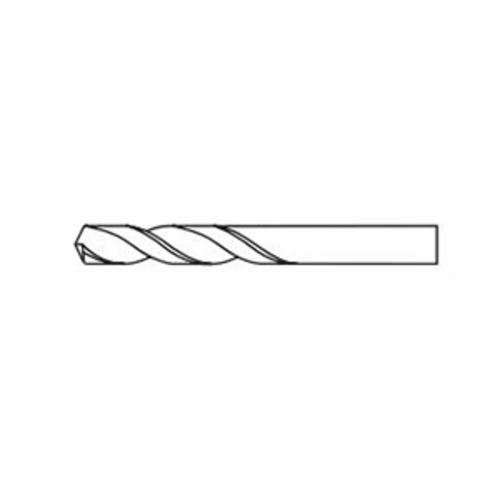

Chicago-Latrobe 49403 Heavy Duty Screw Machine Drill #33 Drill - Wire 0.113 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe 49403 Screw Machine Drill, MPN GREIN-49403CL, is designed for heavy-duty applications in drilling wire gauge materials. The drill features a size #33 wire diameter with a decimal diameter of zero point one one three inches. Its overall length measures one and seven eighths inches, allowing for a cutting depth of three times the diameter. The drill is equipped with two right spiral flutes, designed to minimize thrust during penetration.

• Drill Size: #33 Wire
• Flute Length: seven eighths inch
• Point Type: Split

Product Highlights

This heavy-duty screw machine drill is suitable for drilling alloy steel, carbon steel, cast iron, and tool steel, making it versatile for various machining tasks.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-49403CL

Technical Specifications

• Cutting Depth: 3XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: seven eighths inch
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: one and seven eighths inches
• Point Angle: 135 degrees
• Point Type: Split
• Series: 159
• Shank Size: zero point one one three inches diameter x one inch length
• Shank Type: Straight
• Type: Heavy Duty
• Finish: Black Steam Oxide
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
