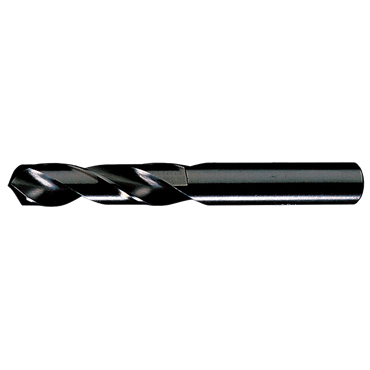

Chicago-Latrobe 49384 135° Heavy-Duty Screw Machine Drill #14 Tip Size

Product Description

The Chicago Latrobe brand offers the 49384 model, a 135° heavy-duty screw machine drill that features a #14 tip size. It is designed for both hand and machine drilling applications. The overall length of this drill is two point one eight seven five inches, with a flute length of one point one two five inches. Made from high-speed steel (HSS), it provides durability and performance in various drilling tasks.

• HSS material for strength
• 135° split point for easy penetration
• Steam oxide finish for enhanced wear resistance

Product Highlights

This drill is suitable for drilling tougher materials. Its shorter length provides rigidity and minimizes deflection during use, especially under heavy feed rates.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 49384

Technical Specifications

• Material: HSS
• Shank Type: Straight
• Diameter: 0.182 in
• Flute Length: 1.125 in
• Shank Length: 1.0625 in
• Coating: Steam Oxide
• Drill Style: Screw Machine
• Point Angle: 135°
• Overall Length: 2.1875 in
• No. of Flutes: 2
• EAN or UPC: 662355493847
