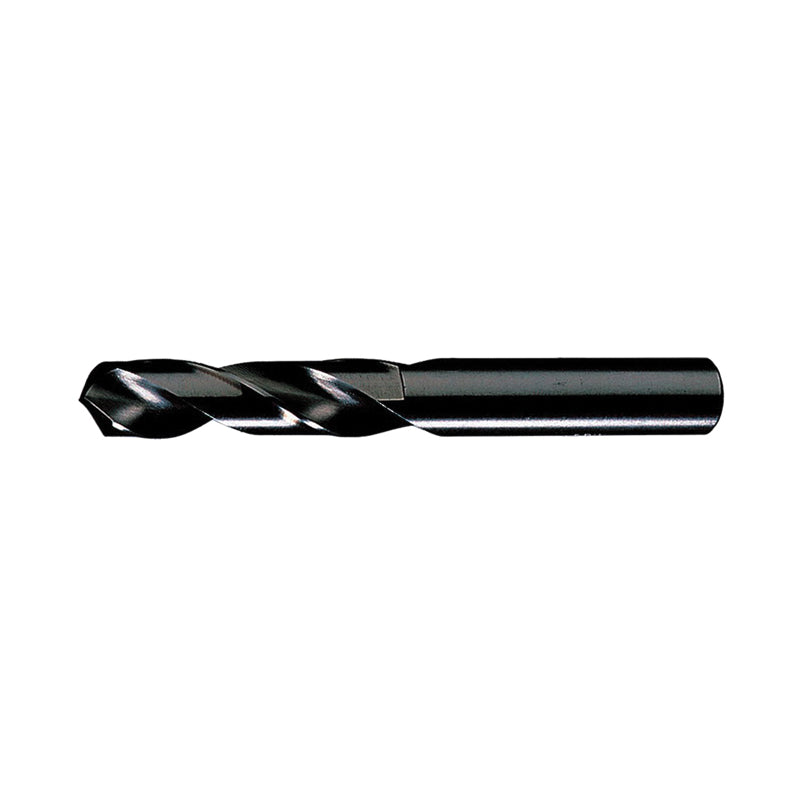

Chicago-Latrobe 49382 159 Heavy Duty Screw Machine Drill #12 Drill - Wire 0.189 in Drill - Decimal Inch

Product Description

Chicago-Latrobe 49382 is a heavy-duty screw machine drill designed to meet various hole-making needs. This drill features an overall length of two and one-fourth inches and is suitable for #12 wire drilling.

• Right-hand cutting direction with a 135-degree split point for easier penetration.
• Constructed from high-speed steel (HSS) with a black steam oxide finish for durability.
• Supported by a two-flute design that enhances cutting efficiency.

Product Highlights

Ideal for drilling into alloy steel, carbon steel, cast iron, and tool steel. Its geometry minimizes deflection during drilling, making it suitable for both hand and machine use.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 49382

Technical Specifications

• Overall Length: 2-1/4 in
• Series: 159
• Cutting Direction: Right Hand
• Number of Flutes: 2
• Flute Length: 1-3/16 in
• Point Angle: 135 deg
• Shank Type: Straight
• Drill Size - Wire: #12
• Drill Size - Decimal Inch: 0.189 in
• Material: HSS
• Finish: Black Steam Oxide
• Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron, Tool Steel
