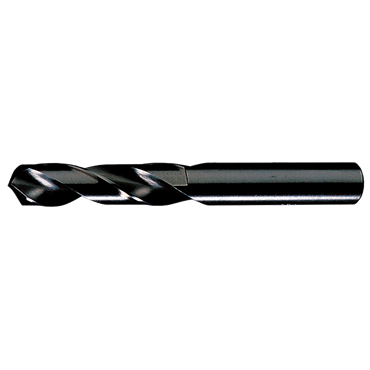

Chicago-Latrobe 49246 O Tip Size 135 Degree Heavy-Duty Screw Machine Drill

Product Description

The Chicago-Latrobe 49246 is a heavy-duty screw machine drill designed for efficiency. It features a tip size of O and an overall length of two point nine three seven five inches. This drill is constructed with high-speed steel and coated with steam oxide for added durability.

• Diameter: O
• Overall Length: 2.9375 inches
• Flute Length: 1.6875 inches

Product Highlights

This drill offers a self-centering 135-degree split point for easy penetration and less thrust. Ideal for drilling tougher materials, it provides exceptional rigidity, reducing deflection, particularly under heavy feed rates.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Material: High-Speed Steel

Technical Specifications

• Flute Length: 1.6875 inches
• Shank Length: 1.25 inches
• No. of Flutes: 2
• Point Angle: 135 degrees
• Coating: Steam Oxide
• Diameter: 0.316 inches
• Weight: 0.3 lb
• EAN: 662355492468
