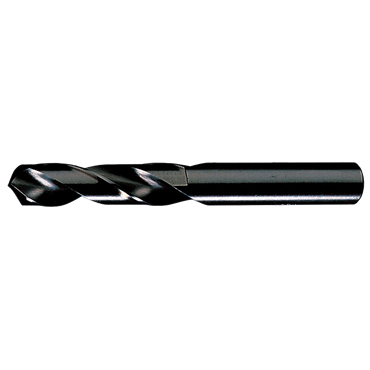

Chicago-Latrobe 49204 1/16 Heavy-Duty Screw Machine Drill 1.625 Overall Length

Product Description

The Chicago-Latrobe 49204 is a heavy-duty screw machine drill with a diameter of 1/16 inch. Built with high-speed steel, this drill is ideal for drilling into tough materials. It features a 135-degree point angle, which allows for precise entry and reduces thrust during operation.

• Drill diameter of 1/16 inches
• Overall length of 1.625 inches
• Coated with steam oxide for enhanced durability

Product Highlights

Engineered for rigorous applications, this drill provides excellent rigidity. The shorter flute and overall length ensure minimal deflection, particularly when using heavy feed rates. It is suitable for both manual and machine drilling tasks.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Part Number: 49204

Technical Specifications

• Shank Length: 1 inch
• Flute Length: 0.625 inches
• Diameter: 0.0625 inches
• Overall Length: 1.625 inches
• Material: High Speed Steel (HSS)
• Point Angle: 135 degrees
• No. of Flutes: 2
• Weight: 0.1 lb
