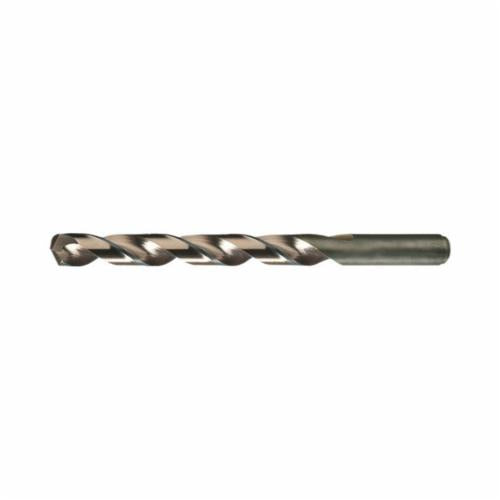

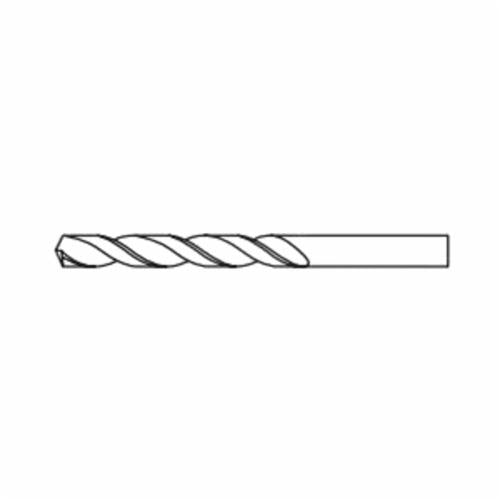

Chicago-Latrobe 46630 550 Heavy Duty Jobber Length Drill Bit, 15/32 in Drill - Fraction, 0.4688 in Drill - Decimal Inch

Product Description

The Chicago-Latrobe 46630 is a heavy-duty jobber length drill bit designed for professional use. This drill bit features a fraction size of 15/32 inches and a decimal size of 0.4688 inches. It has an overall length of five and three-quarters inches and is built to tackle tough materials efficiently.

• Made from M42 HSS-Co 8% for enhanced durability
• 135-degree split point for self-centering and reduced thrust
• Suitable for alloy steel, stainless steel, titanium, and tool steel

Product Highlights

This drill bit is ideal for drilling in high-tensile and work-hardening materials under extreme conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 46630

Technical Specifications

• Overall Length: 5-3/4 inches
• Drill Diameter: 15/32 inches
• Flute Length: 4-5/16 inches
• Point Type: Split
• Cutting Direction: Right Hand
• Number of Flutes: 2
• Cutting Edge Material: M42 HSS-Co 8%
• Cutting Depth: 5XD
