Chicago-Latrobe 46609 | 9/64 in Diameter | Jobber Drill Bit | Replacement MPN

Product Description

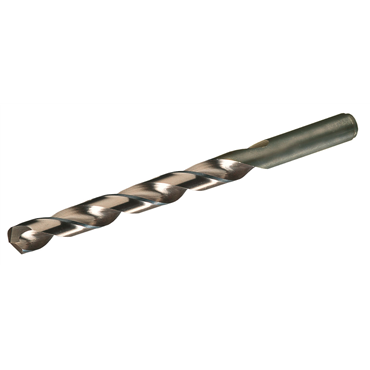

The Chicago-Latrobe 46609 is a jobber drill bit with a diameter of nine sixty-fourths of an inch. This drill is designed using HSS-CO 8% (M42) material, providing durability and strength. It features a 135-degree point angle, spiral flute type, and a straight shank type, making it suitable for a variety of drilling applications.

• Diameter: 9/64 in
• Overall Length: 2.875 in
• Material: HSS-CO 8% (M42)

Product Highlights

The drill bit is ideal for drilling in tough materials such as high-tensile steel and work-hardening materials. The split point design helps with self-centering and reduces thrust for easier penetration.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 46609

Technical Specifications

• Drill Size: 9/64 in
• Point Angle: 135 degrees
• Flute Length: 1.75 in
• Shank Length: 1.125 in
• Diameter - Decimal: 0.140625 in
• Shank Type: Straight
• Direction of Rotation: Right Hand
• Finish: Straw Oxide
