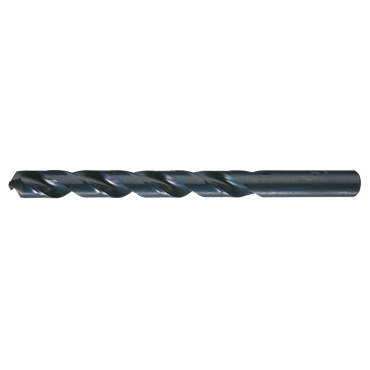

Chicago-Latrobe 45794 Jobber Drill Bit 5.125 inches 0.3970 inches

Product Description

The Chicago-Latrobe 45794 is a jobber drill bit designed for heavy-duty applications. This drill bit features a high-speed steel construction with a steam oxide coating for increased durability and improved chip flow. The bit measures five point one two five inches in overall length and has a diameter of zero point three nine seven inches. Ideal for drilling in tougher materials, it performs well in alloy steel, cast iron, stainless steel, and tool steel.

• Overall length: five point one two five inches
• Diameter: zero point three nine seven inches
• 135 degree point angle for easier penetration

Product Highlights

This drill bit is suitable for various applications in metalworking. It features a self-centering split point which reduces thrust force during drilling.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 45794

Technical Specifications

• Material: HSS
• Coating: Steam Oxide
• No. of Flutes: 2
• Point Angle: 135 degree
• Flute Length: three point seven five inches
• Shank Type: Straight
• Weight: 0.7 LB
• EAN or UPC: 662355457948
