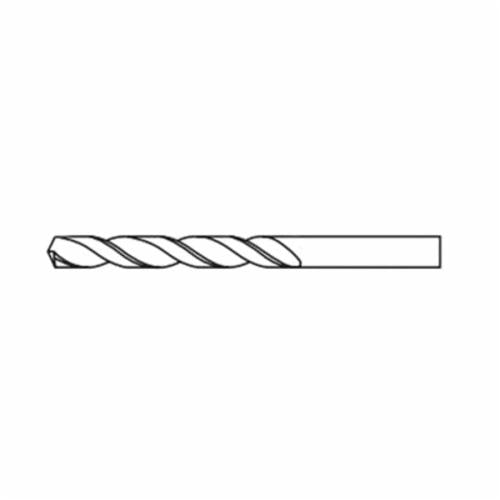

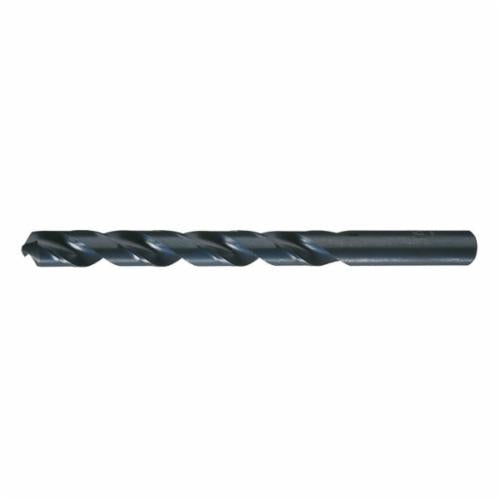

Chicago-Latrobe 45671 150ASP Heavy Duty Jobber Length Drill Bit, #1 Drill - Wire, 0.228 in Drill - Decimal Inch, 135 deg Point

Product Description

Chicago-Latrobe 45671 is a heavy-duty jobber length drill bit. This bit is made from high-speed steel and is designed for tough drilling tasks. It has a diameter of zero point two two eight inches and a point angle of one hundred thirty-five degrees. The overall length of the drill bit is three point seven eight inches. The bit is effective for drilling harder materials like alloy steel and stainless steel.

• Manufactured from premium high-speed steel (HSS)
• Features a 135-degree split point for easy penetration
• Black oxide finish enhances durability and reduces friction

Product Highlights

This Chicago-Latrobe bit is ideal for precision drilling in a variety of metals. Its design allows for efficient chip removal and better cutting performance.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 45671

Technical Specifications

• Flute Type: Right Spiral
• Shank Type: Straight
• Drill Diameter Measurement System: Imperial
• Cutting Depth: 5XD
• Number of Flutes: 2
• Flute Length: 2-5/8 in
• Overall Length: 3-7/8 in
• Point Type: Split
• Shank Size: 0.228 in Dia x 1.25 in L
• Cutting Edge Material: HSS
• Cutting Direction: Right Hand
• Series: 150ASP
• Applicable Materials: Alloy Steel, Cast Iron, Stainless Steel, Tool Steel
• Finish: Black Oxide
• Through Coolant: No
