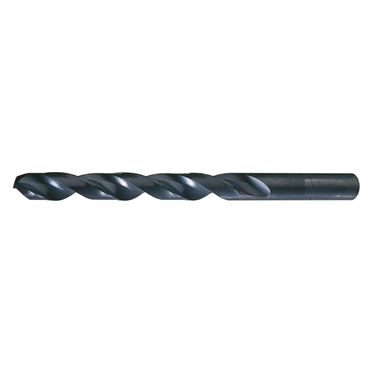

Chicago-Latrobe 45610 Jobber-Length Drill Bit, 0.1563 in diameter, 3.125 in OAL, 5/32 in

Product Description

The Chicago-Latrobe 45610 jobber-length drill bit is made from high-speed steel (HSS) and is designed for general-purpose drilling. The diameter measures five thirty-seconds of an inch, and the overall length is three point one two five inches. The black oxide finish improves wear resistance and helps with chip flow.

• Diameter: 5/32 in
• Overall Length: 3.125 in
• Material: HSS

Product Highlights

This drill bit is suitable for use in various materials, including alloy steel, stainless steel, and cast iron. It features a 135-degree split point angle for easy penetration and reduced thrust during use.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 45610

Technical Specifications

• Direction of Rotation: Right Hand
• Flute Length: 2 in
• Shank Length: 1.125 in
• Drill Size: 0.16 in
• Shank Size: 0.1562 in
• Point Angle: 135 degree
• Diameter - Decimal: 0.15625 in
• No. of Flutes: 2
