Chicago-Latrobe 44194 150 General Purpose Jobber Length Drill Bit X Drill - Letter 0.397 in Drill - Decimal Inch

Product Description

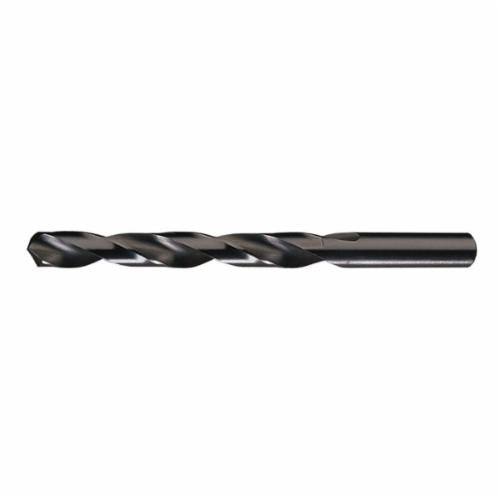

Chicago-Latrobe 44194 is a general-purpose jobber length drill bit. It belongs to the 150 series and is crafted from high-speed steel. This drill bit features an X drill size and has a diameter of zero point three nine seven inches in decimal measure. The overall length is five and one eighth inches, with a cutting depth of five times the diameter. The product has two flutes with a right spiral design, ensuring effective chip removal during operation. The bit is finished with black oxide, enhancing its wear resistance. It is designed to drill through materials such as carbon steel and cast iron.

• General-purpose geometry suitable for diverse materials.
• Right hand cutting direction for effective drilling.
• HSS construction for durability and performance.

Product Highlights

Standard jobber length drill bit for a variety of drilling applications.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• Type: General Purpose

Technical Specifications

• Drill Size - Letter: X
• Drill Size - Decimal Inch: 0.397 in
• Flute Length: 3-3/4 in
• Overall Length: 5-1/8 in
• Number of Flutes: 2
• Point Type: Radial
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
