Chicago Latrobe 44095 CHI-LAT #25 X 1.7/8 X 3 HS Job.Drill Steam Oxide

Product Description

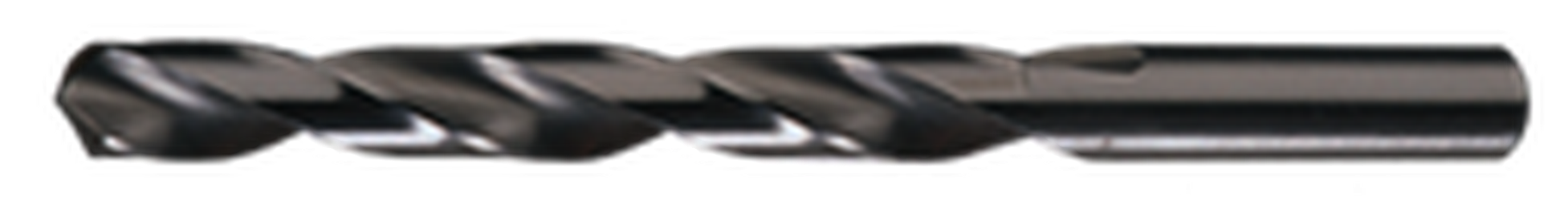

The Chicago Latrobe 44095 is a high-speed jobber drill designed for effective drilling operations. It features a diameter of 3.797 millimeters marked as #25, which equates to 0.1495 inches. This drill is ideal for use in metalworking and fabrication projects. The flute length measures 1.875 inches, while the overall length of the drill is three inches. This product offers wear resistance and lubricity thanks to its steam oxide finish.

• Diameter: 3.797 mm (#25)
• Flute Length: 1 7/8 inches
• Overall Length: 3 inches

Product Highlights

The Chicago Latrobe 44095 drill bit is suitable for working with various materials, including carbon steel and cast iron. Its design ensures efficient chip removal during operation.

Product Information

Standard Information

• Brand: Chicago Latrobe
• Material: High Speed Steel

Technical Specifications

• Coating/Finish: Uncoated
• Diameter: 3.797 mm (#25) (0.1495)
• Shank Dia.: 3.797 mm (#25) (0.1495)
• Flute Length: 1 7/8 inches (1.8750)
• Overall Length: 3 inches (76.200 mm) (3.0000)
