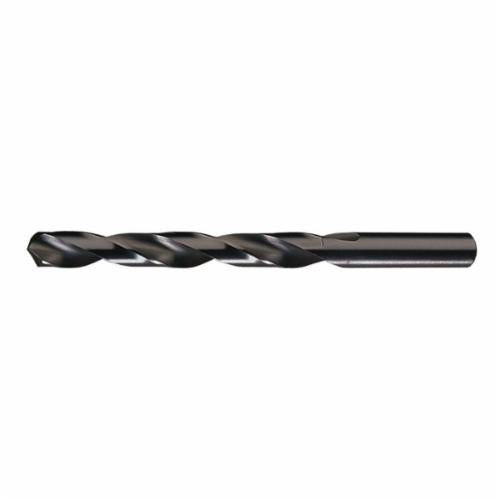

Chicago-Latrobe 44025 General Purpose Jobber Length Drill Bit 25/64 in

Product Description

Chicago-Latrobe 44025 is a jobber length drill bit designed for general purpose use. This drill bit features a diameter of twenty-five sixty-fourths inch and a decimal equivalent of zero point three nine zero six inches. With an overall length of five and one-eighth inches and a flute length of three and three-fourths inches, it provides versatility in various drilling applications.

• General purpose geometry for a range of materials
• High-speed steel construction for durability
• Black oxide finish enhances chip flow and wear resistance

Product Highlights

This drill bit is ideal for drilling into carbon steel and cast iron. It is suited for various operating conditions.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: 44025

Technical Specifications

• Overall Length: 5-1/8 inches
• Drill Diameter: 25/64 inches
• Drill Size - Decimal Inch: 0.3906 inches
• Flute Length: 3-3/4 inches
• Number of Flutes: 2
• Point Angle: 118 degrees
• Cutting Depth: 5XD
• Cutting Edge Material: HSS (High-Speed Steel)
• Finish: Black Oxide
• Shank Type: Straight
• Cutting Direction: Right Hand
• Applicable Materials: Carbon Steel and Cast Iron
