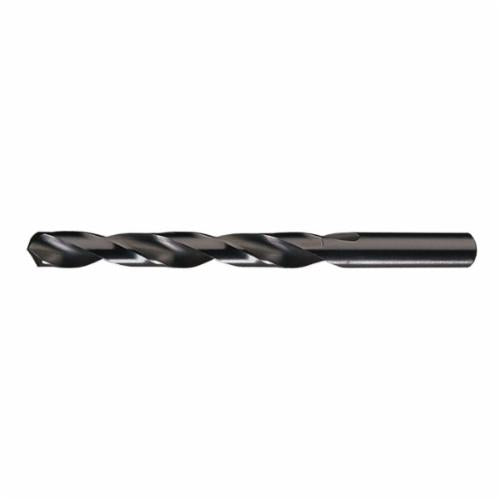

Chicago-Latrobe 44025 General Purpose Jobber Length Drill Bit 25/64 in

Product Description

Chicago-Latrobe 44025 is a general purpose jobber length drill bit designed for drilling in various materials, including carbon steel and cast iron. This drill bit features a diameter of 25/64 inch, equivalent to 0.3906 inches in decimal. With a length of five and one-eighth inches and a cutting depth of five times the diameter, it is suitable for a wide range of applications.

• Designed for general purpose drilling.
• Made from high-speed steel (HSS) with black oxide finish.
• Includes a 118-degree point angle for effective cutting.

Product Highlights

This drill bit is engineered for durability and performance, making it ideal for both professional and DIY projects.

Product Information

Standard Information

• Brand: Chicago-Latrobe
• MPN: GREIN-44025CL

Technical Specifications

• Applicable Materials: Carbon Steel and Cast Iron
• Cutting Depth: 5XD
• Cutting Direction: Right Hand
• Cutting Edge Material: HSS
• Drill Diameter Measurement System: Imperial
• Flute Length: 3-3/4 inches
• Flute Type: Right Spiral
• Number of Flutes: 2
• Overall Length: 5-1/8 inches
• Point Type: Radial
• Series: 150
• Shank Size: 25/64 inches Diameter x 1-3/8 inches Length
• Shank Type: Straight
• Type: General Purpose
• Drill Size - Fraction: 25/64 inches
• Drill Size - Decimal Inch: 0.3906 inches
• Point Angle: 118 degrees
• Material: HSS
• Finish: Black Oxide
• Through Coolant (Yes/No): No
