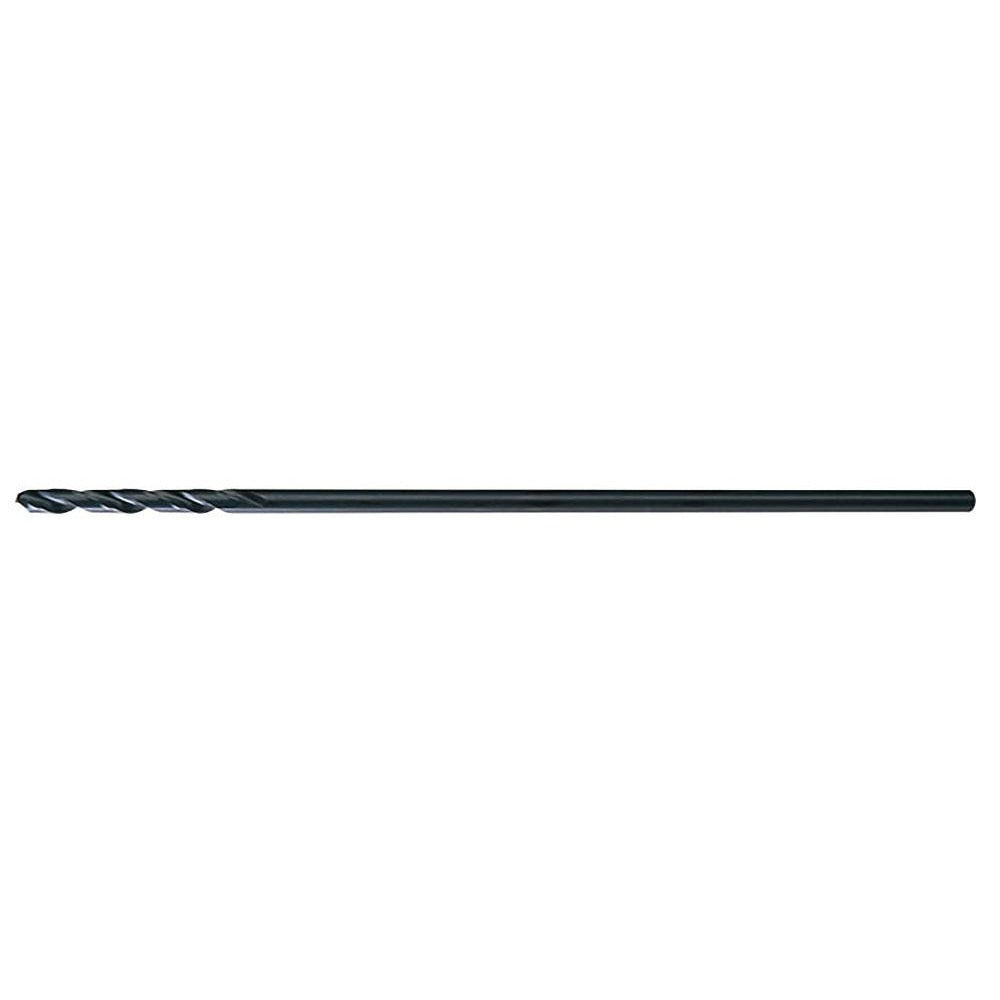

Chicago-latrobe 11096 Aircraft Extension Drill 1/16 in Hss

Product Description

The CHICAGO-LATROBE 11096 is a high speed steel aircraft extension drill bit designed for reaching into deep or obstructed bore locations that standard-length drills cannot access. Built to Series 912 specifications, it measures 1/16 inch (0.0625 inch) in diameter and extends to an overall length of 12 inches, with a 7/8 inch flute length. The 135-degree split point is self-centering, which reduces walking on entry and eliminates the need for a center punch on most materials. The oxide finish provides a basic level of surface protection. Cutting direction is right hand with a two-flute spiral configuration and a tapered, web-thinned web for improved chip clearance in deep holes.

This drill bit is suited for aerospace, sheet metal, HVAC ductwork, electrical rough-in, and plumbing applications where hole placement is restricted by depth, framing, or structural members. The extended reach makes it a go-to tool for contractors and maintenance technicians drilling through deep assemblies, wall cavities, or stacked material. It is built for general-purpose drilling and conforms to NAS 907 Type B standards, making it appropriate for use in controlled trade and light industrial environments.

Key Features

• 135-degree split point is self-centering for accurate starts without center punching
• 12-inch overall length provides extended reach into deep or confined work areas
• High speed steel construction handles a wide range of metals and composite materials
• Oxide finish adds basic corrosion and wear resistance to the tool surface
• Tapered web with web thinning reduces thrust and improves chip evacuation in deep bores
• Meets NAS 907 Type B standard for dimensional and performance consistency

Compatibility

Designed as a general-purpose aircraft extension drill bit compatible with standard 1/16 inch straight-cylindrical shank drill chucks and keyed or keyless drill drivers used in trade and light industrial applications.

Installation Notes

This bit is installed by a qualified tradesperson using a standard drill motor or drill press with a chuck rated for the 1/16 inch straight shank diameter. Secure the workpiece before drilling and use appropriate cutting fluid when drilling hard metals to extend tool life. Inspect the split point for wear or chipping before each use, as a damaged point on a small-diameter bit can deflect or break under load. Dispose of worn bits per applicable shop safety procedures.
