Chicago Faucets EVR-A12A-13ABCP EVR touchless faucet battery powered (0.5 GPM / 4 AA) EVR-A12A-13ABCP

Brand: CHICAGO FAUCETS
SKU: EVR-A12A-13ABCP
Availability: In Stock

Ships same day if ordered by 12 pm
$375.31
$375.31
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

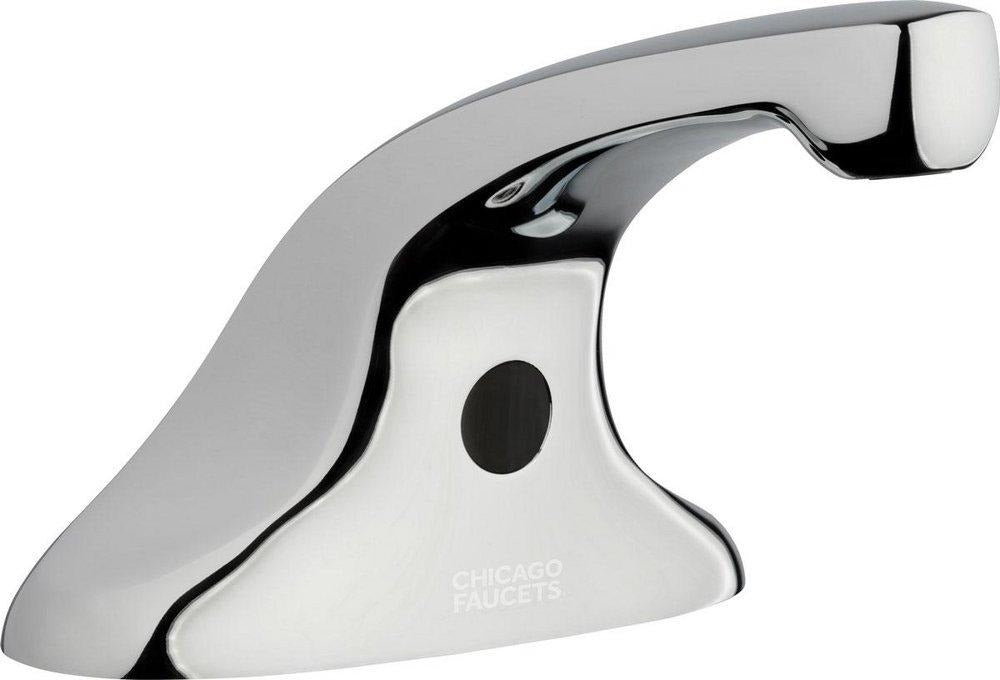

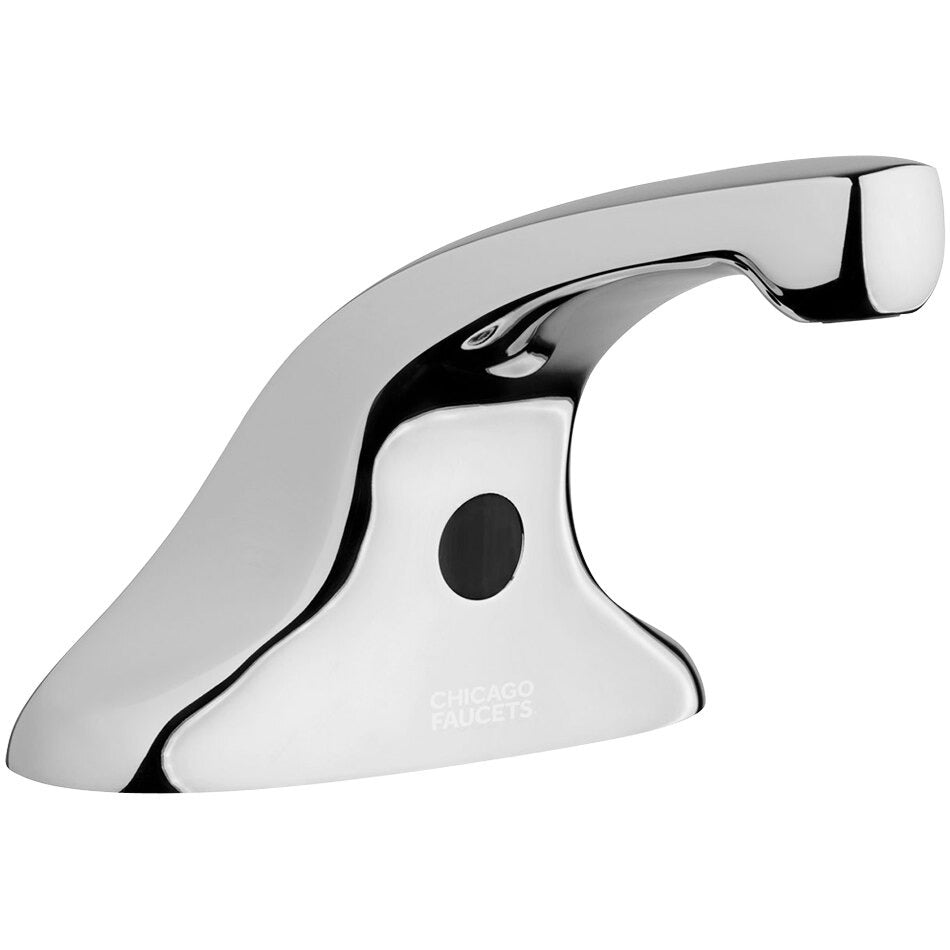

Chicago Faucets EVR-A12A-13ABCP is a deck-mounted, sensor-activated bathroom faucet with a concealed ASSE 1070 thermostatic mixing valve preset to 103 ±3°F. It delivers a pressure-compensating non-aerating 0.5 GPM spray through a 5-inch spout, operates on four AA batteries, and offers five running modes with hygiene flush and usage tracking. The unit includes dual flexible supply hoses and a control box for plug-and-play installation.

  • Concealed ASSE 1070 thermostatic mixing valve preset to 103 ±3°F; integral checks prevent cross-flow
  • Hands-free sensor operation with five running modes, hygiene flush, usage tracking, and 40-second safety auto-timeout
  • Pressure-compensating Econo-Flo non-aerating outlet at 0.5 GPM; dual supply with 3/8" flexible supply hoses; powered by 4 AA batteries

Product Highlights

Deck-mounted, low-lead cast brass touchless faucet with 5" spout reach, 4" centers, and 0.5 GPM flow

Product Information

Standard Information

  • Brand: CHICAGO FAUCETS
  • Manufacturer Part Number: EVR-A12A-13ABCP
  • Country of Origin: Domestic (USA)
Technical Specifications
Brand
Chicago Faucets
Manufacturer Part Number
EVR-A12A-13ABCP
Series
EVR
Model Name
EVR touchless faucet
Flow Rate
0.5 GPM
Outlet Type
Pressure-compensating Econo-Flo non-aerating spray outlet
Spout Reach
5 in
Spout Height
4 3/4 in
Spout Length
5 in
Spout Clearance
3 5/8 in
Mounting Type
Deck mount
Mounting Holes Required
3
Centers
4 in fixed centers
Body Material
Low-lead solid cast brass
Supply Connection
3/8 in compression flexible supply hoses
Thermostatic Mixing Valve
Concealed ASSE 1070 thermostatic mixing valve (built into control box)
Thermostatic Mixing Valve Preset Temperature
103 ±3°F (field adjustable)
Operation Modes
Hands-free sensor with five running modes, hygiene flush, and usage tracking
Power Type
Battery
Batteries
4 AA (6V)
Run Time / Auto-timeout
40 second run time with hand presence; 40 second safety auto-timeout
Pressure Rating
20 - 125 PSI
Minimum Static Pressure for Mixing
30 PSI
Hot Water Inlet Temperature Range
100 - 180°F
Mixed Water Temperature Range
80 - 120°F
Water Inlet Size
3/8 in
Total Lead Content
≤ 0.25%
Vandal Resistant
Yes
ADA Compliant
Yes
Included Components
Control box with thermostatic mixing valve; flexible supply hoses
Dimensions (Width x Height)
6 in x 4 3/4 in
Weight
5.72 lb
Certifications / Standards
ASSE 1070; ASME A112.18.1/CSA B125.1; ASME A112.1070; CSA B125.70; NSF/ANSI/CAN 61 Section 9; NSF/ANSI/CAN 372 Low Lead Content
