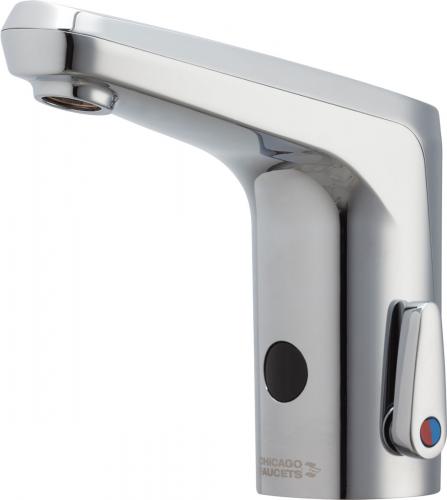

Chicago Faucets E80-A11E-17ABCP E-Tronic 80 Series Advanced Electronic Commercial Faucet with Touchless Sensor Operation and ASSE 1070 Scald Protection 6-volt Lithium CRP2 Battery

Product Description

The CHICAGO FAUCETS E80-A11E-17ABCP is an advanced electronic commercial faucet featuring touchless sensor operation and ASSE 1070 scald protection. It includes a built-in ASSE 1070 thermostatic mixing valve for safety and offers easy installation. The faucet operates with a 10-second run time with hand presence and an auto-timeout feature. Powered by a 6-volt lithium CRP2 battery, it is compatible with the Commander Handheld Programming Unit for field-adjustable modes. It is designed for single-hole mounting with dual supply.

• Touchless sensor operation with 10-second run time and auto-timeout feature.
• Built-in ASSE 1070 thermostatic mixing valve for scald protection.
• Powered by a 6-volt lithium CRP2 battery for reliable performance.

Product Highlights

Advanced electronic commercial faucet with touchless sensor, ASSE 1070 scald protection, and 6-volt lithium CRP2 battery power.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: E80-A11E-17ABCP
• Country of Origin: USA

Technical Specifications

• MPN: E80-A11E-17ABCP
• Flow Rate: 1.0 GPM (Pressure Compensating Laminar Flow Outlet)
• Thermostatic Mixer: User adjustable (included), pre-assembled with concealed internal control mixer
• Mounting Type: Single-hole
• Mixing Valve: Built-in ASSE 1070 thermostatic mixing valve
• Sensor Operation: 10 second run time with hand presence, auto-timeout after 10 seconds, reactivate by removing hands for 1 second
• Power Source: 6-volt lithium CRP2 battery
• Compatibility: Commander Handheld Programming Unit (multiple field-adjustable modes and ranges)
• Supply: Dual supply with ASSE 1070 thermostatic mixing valve, flexible supply hoses included
• Finish: Polished chrome
• Collection: E-Tronic 80
• Operating Pressure: 20 psi to 125 psi
