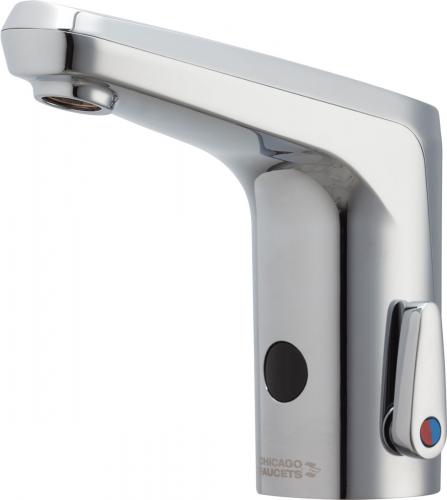

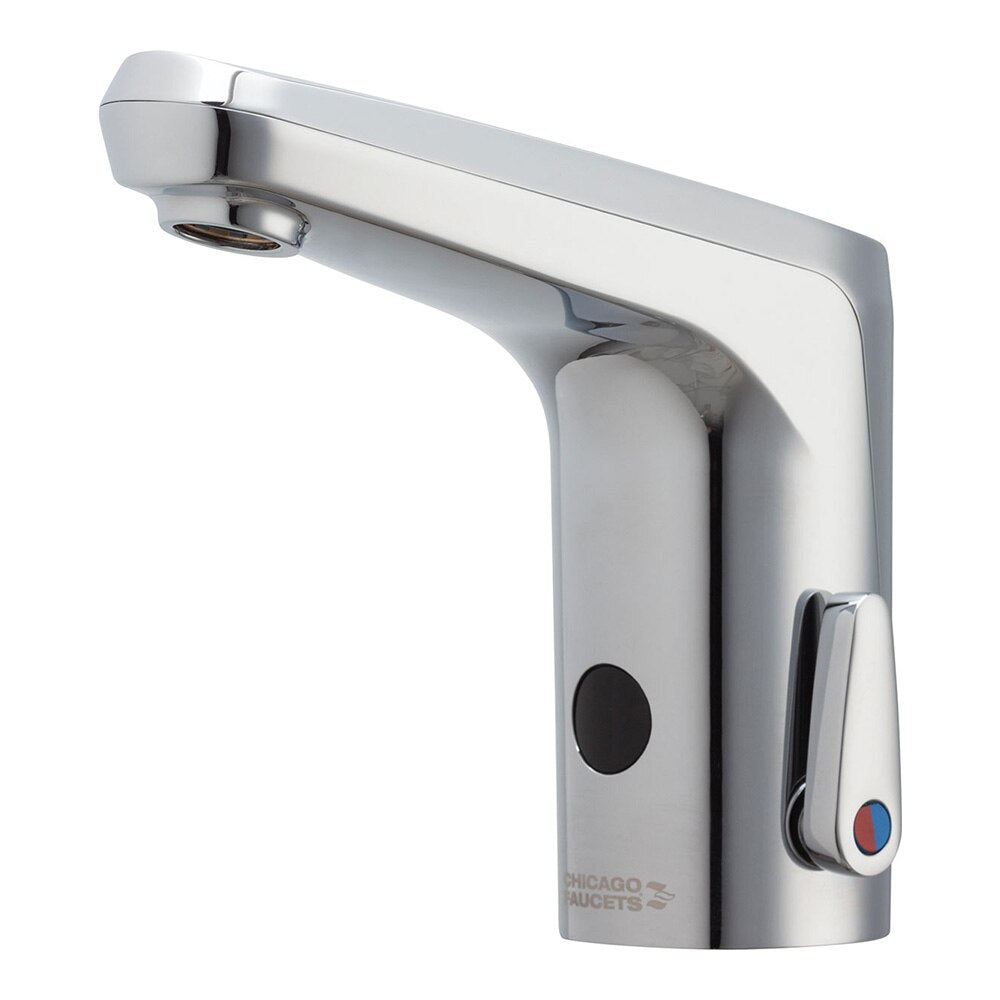

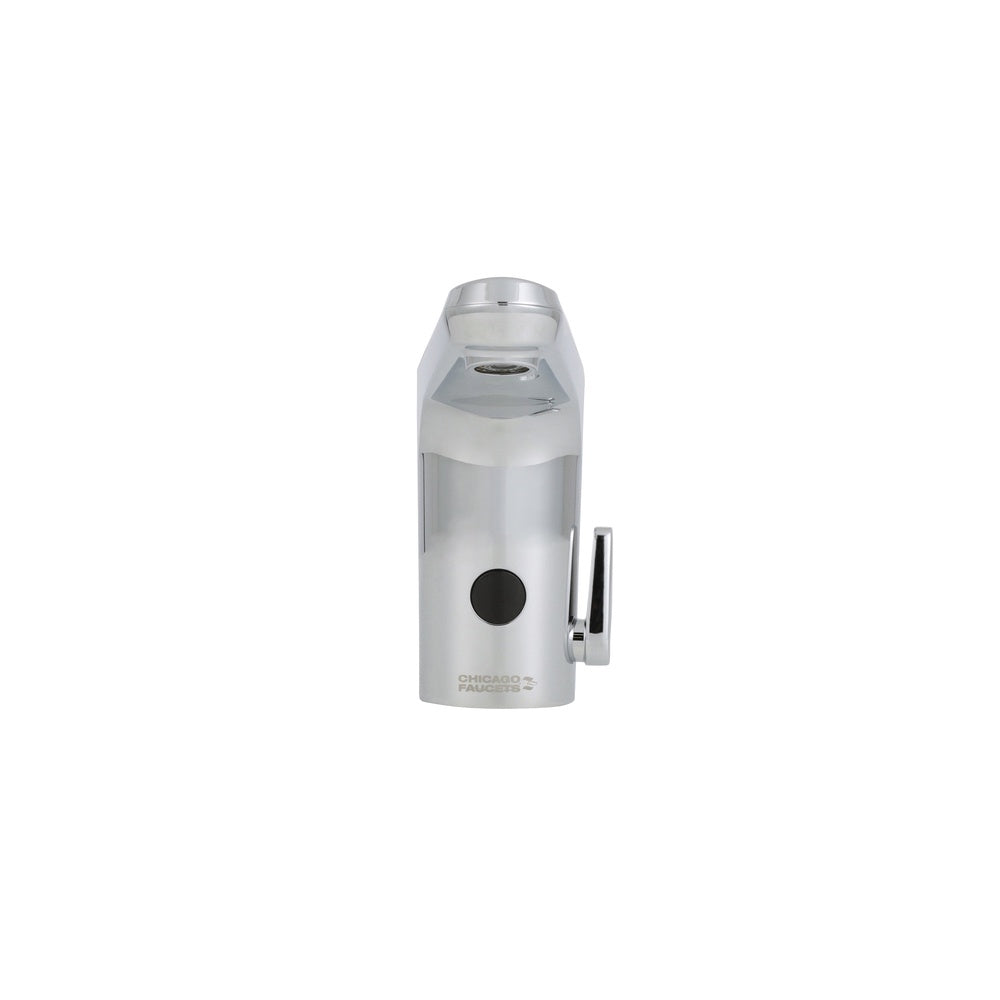

Chicago Faucets E80-A11A-66ABCPT E-Tronic 80 Series

Product Description

The CHICAGO FAUCETS E80-A11A-66ABCPT is an advanced electronic commercial faucet with touchless sensor operation. It features Bluetooth communication for adjustments and mode changes using the Chicago Faucets CF Connect App. The faucet includes optional user-adjustable temperature control and a safety auto-timeout feature that shuts the water off after 10 seconds.

• Easy install, monitoring, and maintenance in a commercial sensor faucet
• Bluetooth technology
• Pressure compensating Econo-Flo non-aerating spray outlet

Product Highlights

Touch-free faucet with Bluetooth, temperature control, and safety auto-timeout.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: E80-A11A-66ABCPT

Technical Specifications

• Pressure compensating Econo-Flo non-aerating spray outlet: 0.5 GPM (243.145.AB.1)
• E-Tronic 80 module with Bluetooth communication: 244.458.00.1T
• Temperature Control: Includes optional user-adjustable temperature control. Pre-assembled with concealed internal temperature control mixer.
• Mounting: Single-hole
• Run Time: 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
• Power: Includes Long Term Power System (LTPS) - DC
• Bluetooth: Built-in Bluetooth technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
• Internal Antenna Specifications: Peak Gain of the antenna: 1.7dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC02
• Supply: Dual supply with concealed internal mixer; flexible supply hoses included
• Finish: Polished chrome
• Manufacturer (Brand): Chicago Faucets
• Manufacturer Item Number: E80-A11A-66ABCPT
• Flow Rate: 0.5 GPM
• Feature: Genuine OEM
• Model Name: E-Tronic
• Operating Temperature: 180 F max.
• Pressure: 20 psi to 125 psi
• Installation Type: Single Hole
• Buy American Act Compliant: Yes
• Type: Sensor
