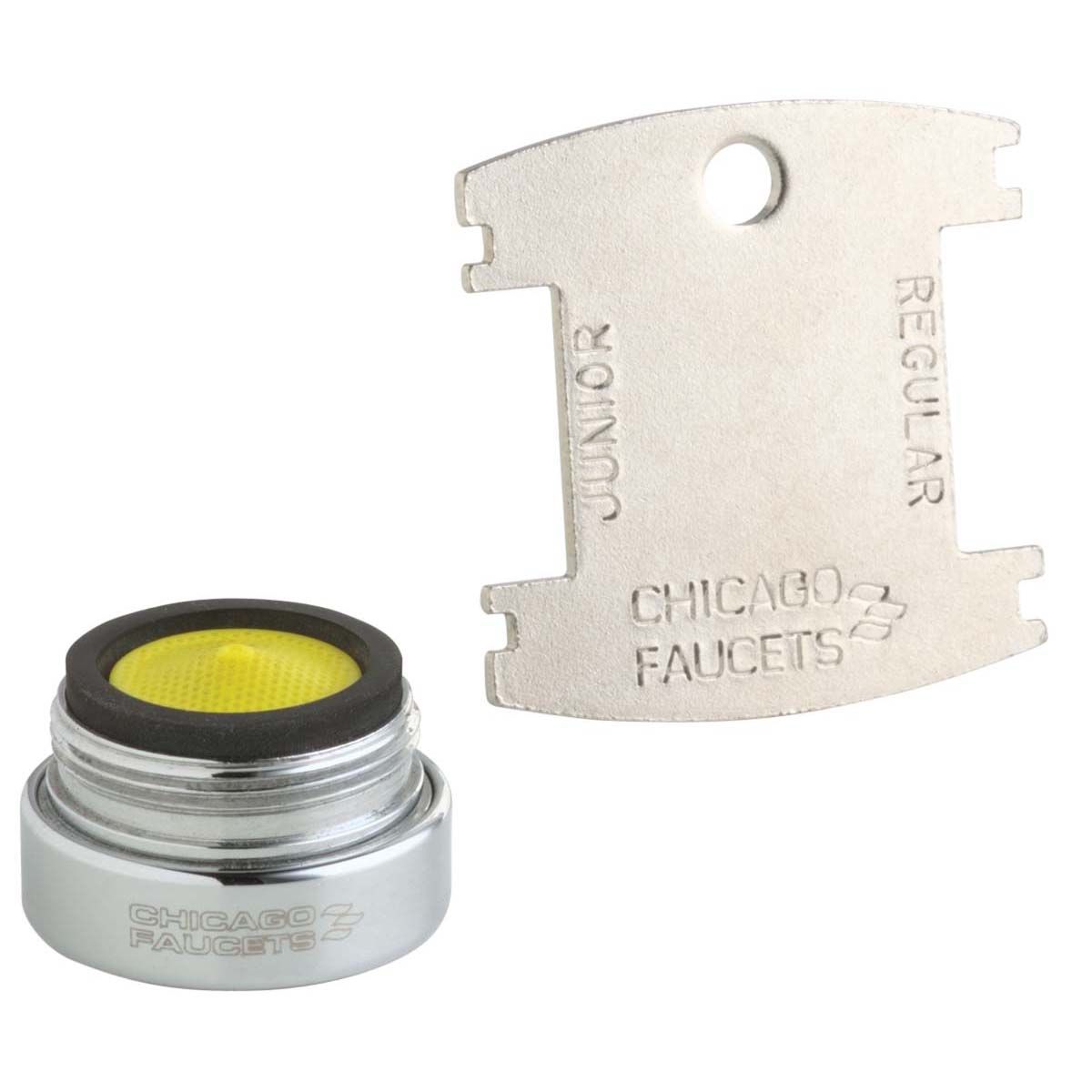

Chicago Faucets E2805JKABCP Vandal Proof Spray Outlet 0.5 Gpm

Product Description

The CHICAGO FAUCETS E2805JKABCP is a vandal-proof, non-aerating spray pressure compensating Econo-Flo outlet designed for commercial and institutional plumbing fixtures. It delivers a controlled 0.5 GPM flow rate regardless of supply pressure variation, making it suitable for high-use facilities where water conservation and abuse resistance are priorities. The unit is constructed with Ecast material, carrying a lead content of 0.25% or less by weighted average to meet lead-free compliance requirements. A chrome plated finish provides corrosion resistance in demanding environments. Installation requires the included vandal-proof outlet key, limiting unauthorized removal or tampering.

This outlet is intended for commercial restroom and institutional applications where vandal resistance is required. Typical installations include schools, correctional facilities, stadiums, and other public or semi-public plumbing environments. The 13/16 inch - 27 UNS male inlet threading makes it compatible with standard faucet spout outlets used in those settings. Licensed plumbers and facilities maintenance personnel are the primary installers of this component.

Key Features

• Pressure compensating design maintains 0.5 GPM across varying supply pressures
• Vandal-proof construction with proprietary outlet key included for controlled access
• Non-aerating spray pattern reduces splashing in high-traffic restrooms
• Ecast construction with lead content of 0.25% or less by weighted average for lead-free compliance
• 13/16 inch - 27 UNS male inlet for standard commercial faucet spout compatibility
• Chrome plated finish for durability and corrosion resistance

Compatibility

Designed as an OEM-style replacement outlet for commercial faucets equipped with a 13/16 inch - 27 UNS male inlet thread pattern.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply to the fixture before removing the existing outlet or installing this component. Use the included vandal-proof outlet key to seat and secure the outlet properly. Do not over-tighten the inlet connection, as this may damage the threaded fitting or housing.
