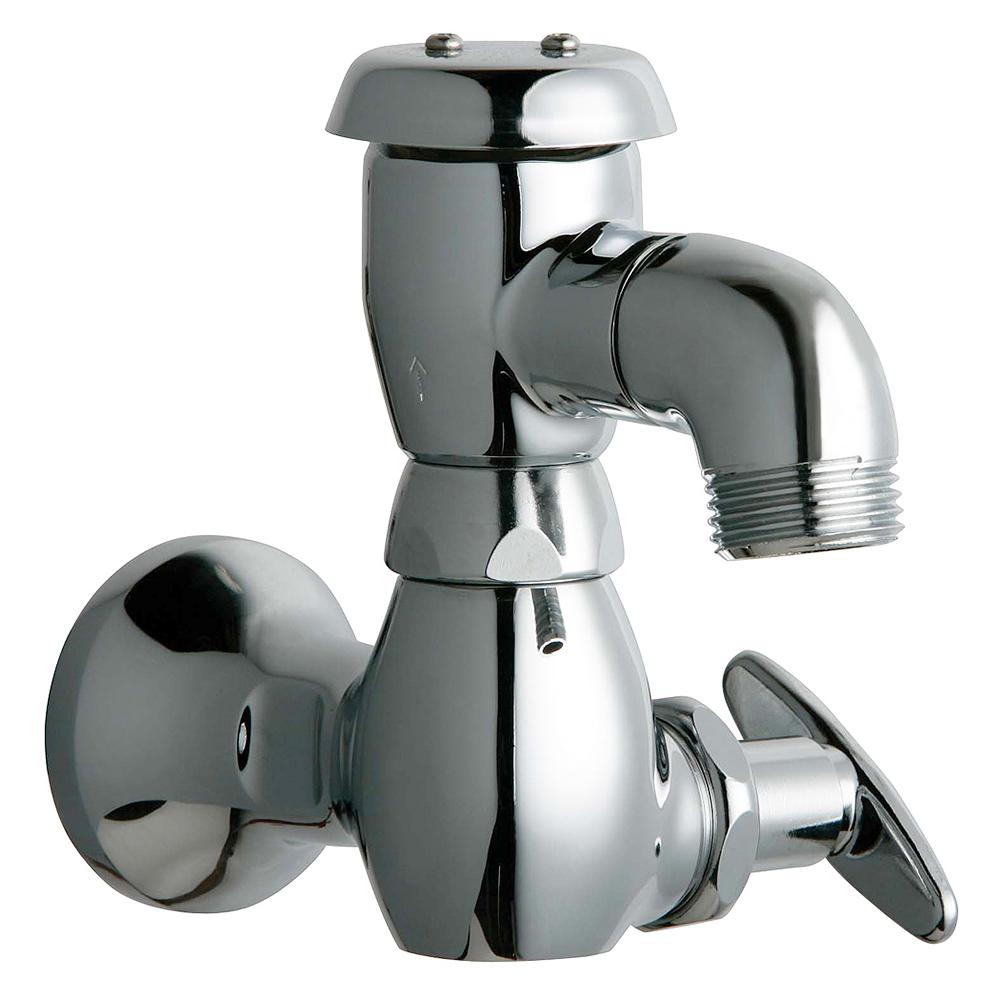

Chicago Faucets 952-XKCP Inside Sill Fitting

Product Description

The Chicago Faucets 952-XKCP inside sill fitting is a robust and reliable plumbing component designed for commercial use. This fitting includes a two-point quarter-turn ceramic cartridge which offers consistent performance. It comes with a vacuum breaker assembly and a three-quarter inch NPT female thread inlet for easy installation.

• Includes 2-1/4 inch Tee handle
• Features ceramic quarter-turn operating cartridge, right-hand
• Three-quarter inch NPT female thread inlet

Product Highlights

Product Information

Standard Information

• Brand: Chicago Faucets
• MPN: 952-XKCP

Technical Specifications

• Handle: 2-1/4 inch Tee handle (293-006JKRCF)
• Cartridge: Ceramic 1/4-turn operating cartridge, right-hand (1-099XKJKABNF)
• Vacuum Breaker: Vacuum breaker assembly (892-402KJKABNF)
• Inlet: 3/4 inch NPT female thread inlet
• Finish: Polished chrome
• UPC: 611943356552
• Valve Size: 3/4 inch
• Faucet Height: 4-3/8 inch
• Spout Reach: 5 inches
• Required Installation Holes: 1
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140 degrees Fahrenheit
• Handles Included: Yes
• Material: Brass
• Number of Handles: 1
• Approved for Commercial Use: Yes
• ASME Code: A112.18.1
• ASSE Code: 1001
• Certifications: ASSE, ASME, CSA
• CSA Code: B125.1
• Low Lead Compliant: No
• Connection Size: 1/2 inch
• Faucet Hole Size: 2.125 inches
