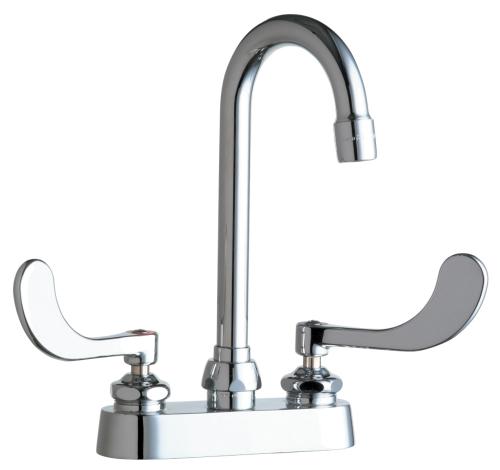

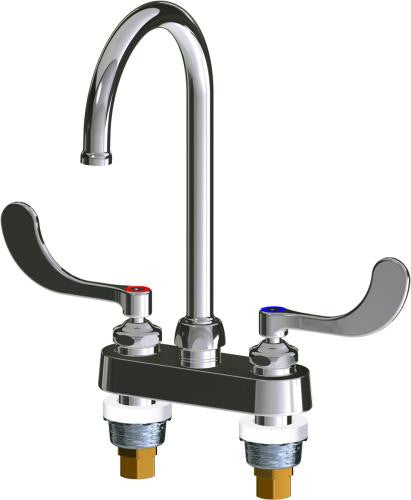

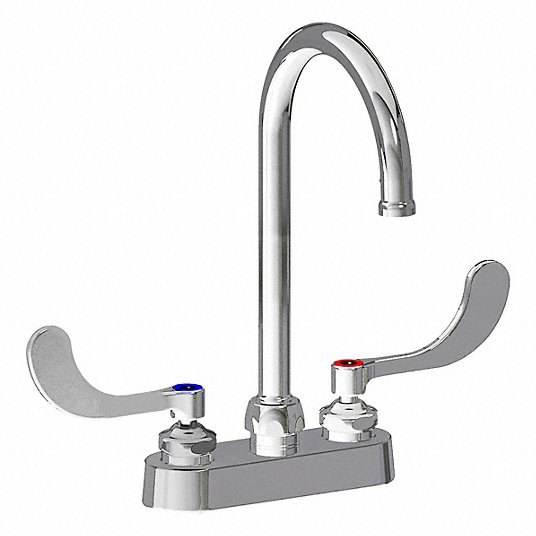

Chicago Faucets 895-GN6FC-317ABCP 895 Series Deck-mounted Manual Faucet with 4 inches Centers

Product Description

The CHICAGO FAUCETS 895-GN6FC-317ABCP is a deck-mounted manual faucet with 4" centers. It is designed for installation on bathroom sinks and washbasins with multiple holes. The faucet features a 6" rigid/swing gooseneck spout with a 1.5 GPM flow control, and 4" wristblade handles for easy operation.

• Features a 6" rigid/swing gooseneck spout with 1.5 GPM flow control.
• Includes 4" wristblade handles with color-coded index.
• Equipped with Quaturn compression operating cartridges for both right-hand and left-hand operation.

Product Highlights

This manual faucet combines durability with ease of use, suitable for commercial applications with its vandal-resistant handle and ADA compliance.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 895-GN6FC-317ABCP
• Country of Origin: USA

Technical Specifications

• Spout: 6" Rigid/swing gooseneck spout with 1.5 GPM flow control (GN6FCJKABCP)
• Handles: 4" Wristblade handle (pair) (317-PRJKCP)
• Cartridge, right-hand: Quaturn compression operating cartridge, right-hand (1-099XTJKABNF)
• Cartridge, left-hand: Quaturn compression operating cartridge, left-hand (1-100XTJKABNF)
• Flow rate: 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet
• Centers: 4" fixed centers
• Handle Indexing: Handles include color-coded index
• Inlets: 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Package Quantity: 1
• 3-1/2" Rigid/swing gooseneck spout: GN1AJKABCP
• Pressure compensating Softflo aerator, 2.2 GPM: E3JKABCP
• Brand: CHICAGO FAUCETS
• Series: 895
• Product Type: Faucet
• Operation Method: Manual
• Mounting Type: Centerset
• Mounting Location: Deck
• Flow Rate: 1.5 gpm
• Flow Type: Laminar
• Body Material: Cast Brass
• Color/Finish: Polished Chrome
• Number of Mounting Holes: 2
• Number of Handles: Double
• Handle Material: Cast Brass
• Handle Type: Wristblade
• Cartridge Type: Compression
• Spout Shape: Gooseneck
• Spout Style: Swivel
• Spout Height: 6-3/4 in
• Spout Reach: 6 in
• Spout Outlet Height: 7-1/2 in
• Water Supply Type: Hot and Cold
• Temperature Control: Adjustable
• Temperature: For Water Temperature Hot/Cold
• Water Inlet Connection Type: NPSM
• Overall Width: 6 in
• Max. Installation Surface Thickness: 1-1/2 in
• Min. Mounting Hole Spacing: 4 in
• Max. Mounting Hole Spacing: 4 in
• Min. For Mounting Hole Diameter: 1-1/8 in
• Max. For Mounting Hole Diameter: 1-3/8 in
• Index Style: Color
• Max. Pressure: 125 psi
• Min. Temperature: 40 °F
• Max. Temperature: 140 °F
• Includes: Mounting Hardware
• Includes Drain: Drain Not Included
• Application: Commercial
• Replacement Cartridge Mfr. Part Number: 1-099XTJKABNF; 1-100XTJKABNF
• Replacement Cartridge Grainger Item Number: 5UTV5; 5UTV6
• Manufacturers Warranty Length: 1 yr Limited; 5 yr Limited; Lifetime Limited
• Vandal Resistant Features: Vandal-Resistant Handle
• ADA Compliance: ADA Compliant
• CEC Compliance: Not CEC Compliant
• Standards: AB1953; ANSI A117.1; ASME A112.18.1/CSA B125.1; BAA Compliant; NSF/ANSI/CAN 372 Low Lead Content; NSF/ANSI/CAN 61: Q ≤ 1
• Unique ref.: 895-gn6fc-317abcp--manual-sink-faucet
• Product family: Manual Sink Faucets
• Product group: 895 Series
• Type: Object (single object)
• Date of publishing: 2025-04-11
• Edition number: 1
• Material main: Polished Chrome
• Designed in: United States
• Manufactured in: United States
• BIMobject Category: Sanitary - Taps & Mixers
• IFC classification: Sanitary Terminal
• Uniclass 2015 Code: Pr_40_20_87
• Uniclass 2015 Description: Taps and water supply outlet fittings
• CSI MasterFormat 2014 Code: 22 42 39
• CSI MasterFormat 2014 Title: Commercial Faucets, Supplies, and Trim
• OmniClass Number: 23-31 11 00
• OmniClass Title: Faucets
• Region availability: North America
