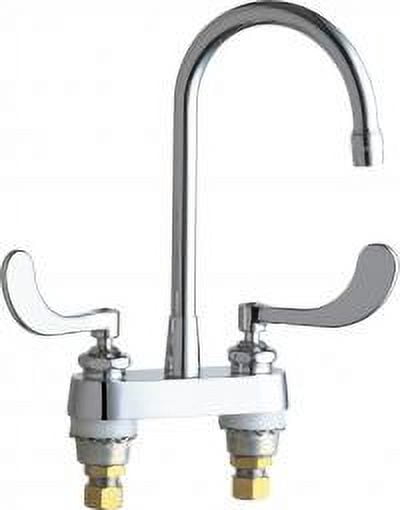

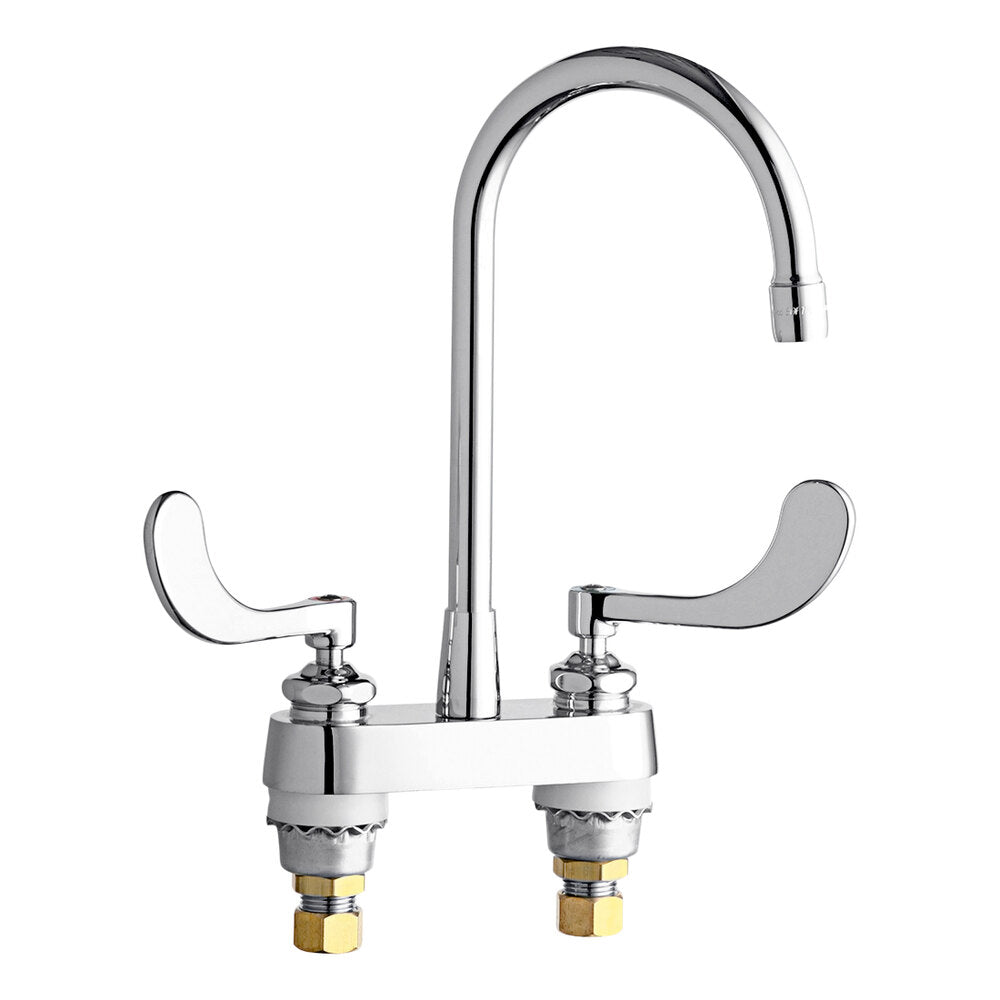

Chicago Faucets 895-317E73-RGD2AB Deck-Mounted Manual Faucet 1.0 GPM (4 inches Centers)

Product Description

Chicago Faucets 895-317E73-RGD2AB is a deck-mounted manual faucet with 4" fixed centers, a 5-1/4" rigid gooseneck spout, and a pressure compensating non-aerating laminar outlet rated 1.0 GPM. It uses a pair of 4" wristblade handles with Quaturn compression operating cartridges and 1/2" NPSM supply inlets with coupling nut for 3/8" or 1/2" flexible risers. The unit meets ADA and major plumbing certifications.

• 5-1/4" rigid gooseneck spout with pressure compensating non-aerating laminar outlet (1.0 GPM)
• Vandal-proof 4" wristblade handles with left/right Quaturn compression cartridges
• Deck-mounted installation with 4" fixed centers and 1/2" NPSM supply inlets (coupling nut for 3/8" or 1/2" flexible riser)

Product Highlights

Deck-mounted commercial faucet, 4" centers, 1.0 GPM laminar outlet, Quaturn compression cartridges, ADA and WaterSense/NSF certifications.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 895-317E73-RGD2AB

Technical Specifications

• Brand: Chicago Faucets
• MPN: 895-317E73-RGD2AB
• Series: 895
• Mount: Deck-mounted
• Faucet Configuration: Centerset
• Centers: 4" fixed centers
• Spout Type: Rigid gooseneck
• Spout Length/Reach: 5-1/4" (some sources report 5-3/8")
• Spout Height: 11 in
• Outlet Type: Pressure compensating non-aerating laminar outlet
• Flow Rate: 1.0 GPM (3.8 L/min)
• Handle Type: 4" wristblade handles (pair), color-coded index, vandal-proof style noted
• Cartridge Type: Quaturn compression operating cartridges (left and right)
• Body Material: Brass / ECAST low-lead construction (<= 0.25% total lead by weighted average)
• Finish: Polished chrome
• Supply Inlets: 1/2" NPSM supply inlets with coupling nut for 3/8" or 1/2" flexible riser
• Connection Size: 1/2 in
• Connection Type: NPSM
• Maximum Deck Thickness: 1/16 to 1-1/2 in
• Pressure Rating: 20 to 125 psi
• Temperature Rating: 40 to 140 F
• Weight: 4.75 lb
• Faucet Width: 12 in
• Certifications: ADA ANSI/ICC A117.1; ASME A112.18.1/CSA B125.1; NSF/ANSI/CAN 61; EPA WaterSense; ICC-ES
