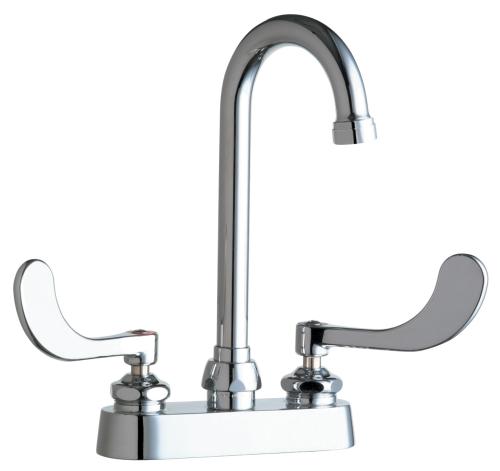

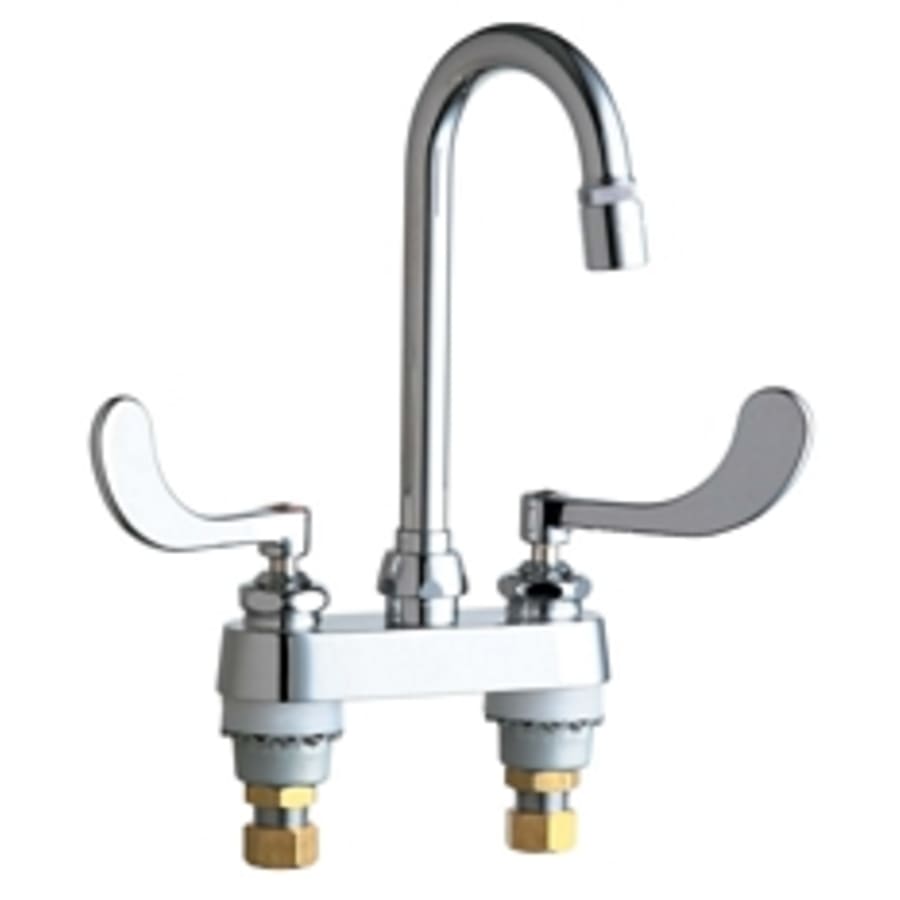

Chicago Faucets 895-317E36ABCP Series Deck-mounted Manual Faucet 4 inches Centers

Product Description

The CHICAGO FAUCETS 895-317E36ABCP is a deck-mounted manual faucet with 4" centers. It features a 3-1/2" rigid/swing gooseneck spout and a pressure compensating laminar flow non-aerating outlet that releases water at 1.5 GPM. Constructed from durable cast brass with a polished chrome finish, it ensures longevity and style.

• 3-1/2" Rigid/swing gooseneck spout
• Pressure compensating laminar flow non-aerating outlet, 1.5 GPM
• 4" Wristblade handle (pair)

Product Highlights

This faucet combines durability with efficient water usage, making it suitable for commercial and residential settings.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 895-317E36ABCP
• Country of Origin: USA

Technical Specifications

• Spout: 3-1/2" Rigid/swing gooseneck spout (GN1AJKABCP)
• Outlet: Pressure compensating laminar flow non-aerating outlet, 1.5 GPM (E36JKABCP)
• Handles: 4" Wristblade handle (pair) (317-PRJKCP)
• Cartridge, right-hand: Quaturn compression operating cartridge, right-hand (1-099XTJKABNF)
• Cartridge, left-hand: Quaturn compression operating cartridge, left-hand (1-100XTJKABNF)
• Centers: 4" fixed centers
• Handle Index: Handles include color-coded index
• Inlets: 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Faucet Handle Style: 4" Wristblade
• Manufacturer: Chicago
• Model #: 895-317E36ABCP
• Handle Length: 4 Inches
• Spout Length: 3 5/8 Inches
• Faucet Width: 12 Inches
• Faucet Height: 9 5/8 Inches
• Cartridge Type: Compression
• Faucet Centers: 4 Inches
• Flow Rate: 1.5 GPM
• Handle Type: Wrist
• Installation Type: Deck Mounted
• Material: Brass
• Mounting Style: Deck Mounted
• Mounting Type: Workboard
• Pressure Rating: 20 - 125 PSI
• Rough In: 4 Inches
• Spout Clearance: 6 3/4 Inches
• Spout Type: Gooseneck
• Sprayer: Without Sprayer
• Temperature Rating: 140 Degrees F
• Type: Faucets
• Water Inlet Size: 1/2 Inches
• Overall Height: 9 5/8"
• Spout Height: 6.75 in.
• Spout Reach: 3.625 in.
• Required Installation Holes: 3
• Maximum Deck Thickness: 1 1/2"
• Rated Operating Temperature: 40 - 140 degrees
• Rated Operating Pressure: 20 - 125 PSI
• Connection: 1/2"
• Max Deck Thickness: 1.5 in.
• Water Connection: 1/2"
• Drain Assembly Included: No
• Handles Included: Yes
• Valve Included: Yes
• Faucet Holes: 3
• Handle Material: Metal
• Number Of Handles: 2
• Theme: Basic
• Valve Type: Ceramic Disc
• ADA: Yes
• Approved for Commercial Use: Yes
• ASME Code: A112.18.1
• CA Drought Compliant: No
• Certifications: ANSI, ASME, CSA, NSF
• CSA Code: B125.1
• Eco Friendly: Yes
• Lead Leaching Certified NSF/ANSI 61: Yes
• Low Lead Compliant: Yes
• Made in America: Yes
• WaterSense Certified: Yes
• Center Distance: 4 in
• Commercial/Residential: Commercial
• Connection Size: 1/2 in
• Connection Type: NPSM
• Dimensions: 9-5/8 in H
• Finish/Color: Polished Chrome
• Spray Pattern: Laminar
• Valve/Cartridge Type: Quaturn Compression
