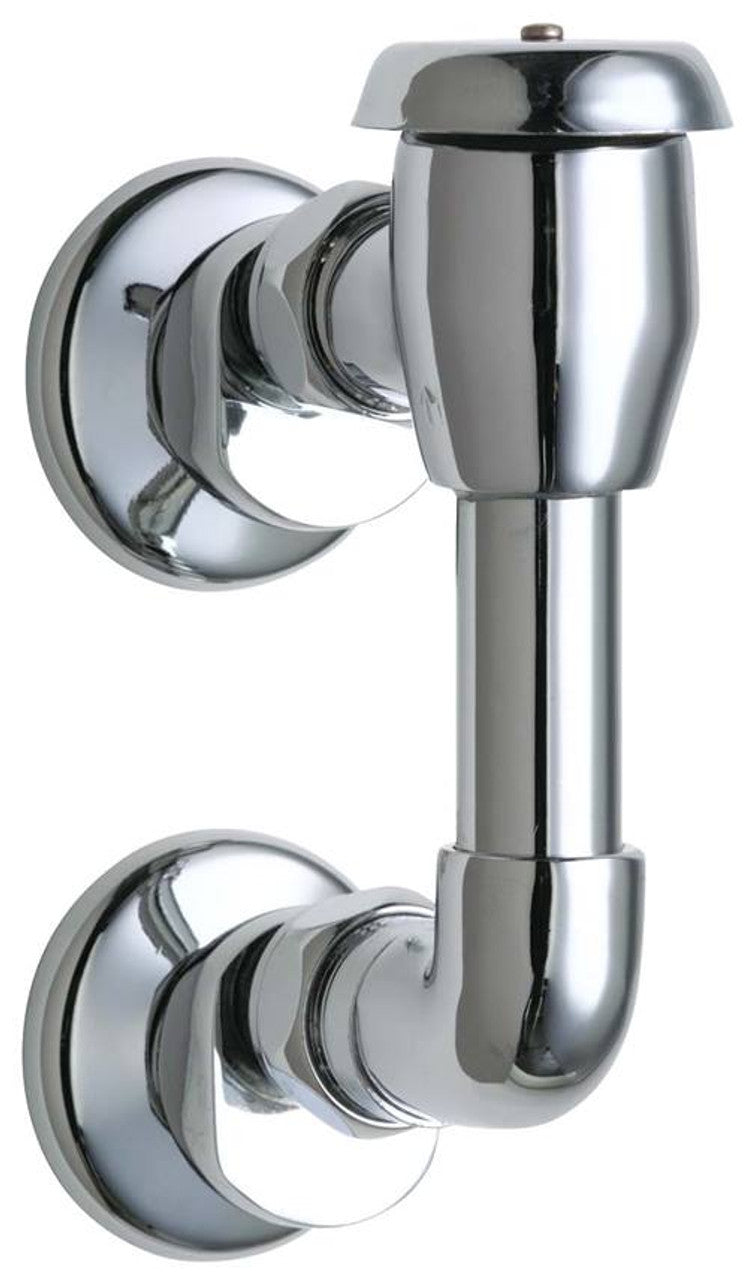

Chicago Faucets 892-GCP Elevated Vacuum Breaker Assembly

Product Description

The Chicago Faucets 892-GCP is an elevated vacuum breaker assembly designed for concealed piping. It features a half-inch female inlet and outlet, making it suitable for various plumbing applications. This atmospheric vacuum breaker is not intended for continuous pressure applications. The assembly has a solid brass body for durability and includes adjustable supply arms with a wall flange.

• Concealed piping assembly for sensitive installations
• Half-inch female inlet and outlet for compatibility
• Brass construction for longevity

Product Highlights

The 892-GCP is perfect for plumbing installations requiring an elevated atmospheric vacuum breaker.

Product Information

Standard Information

• Application: Elevated Atmospheric Vacuum Breaker
• Material: Brass

Technical Specifications

• Package Quantity: 1
• Inlet: 1/2 inch female
• Outlet: 1/2 inch female
• Finish: Chrome plated
• Inlet Diameter: 0.5 inches
• Outlet Diameter: 0.5 inches
• Water Pressure (Max): 125 PSI
• Water Pressure (Min): 20 PSI
• Width: 2.312 inches
• Approved for Commercial Use: Yes
• ASME Code: A112.18.1M
• ASSE Code: 1001
• Certifications: ASSE, NSF, ASME, CSA
• CSA Code: B125, B64.1.1
