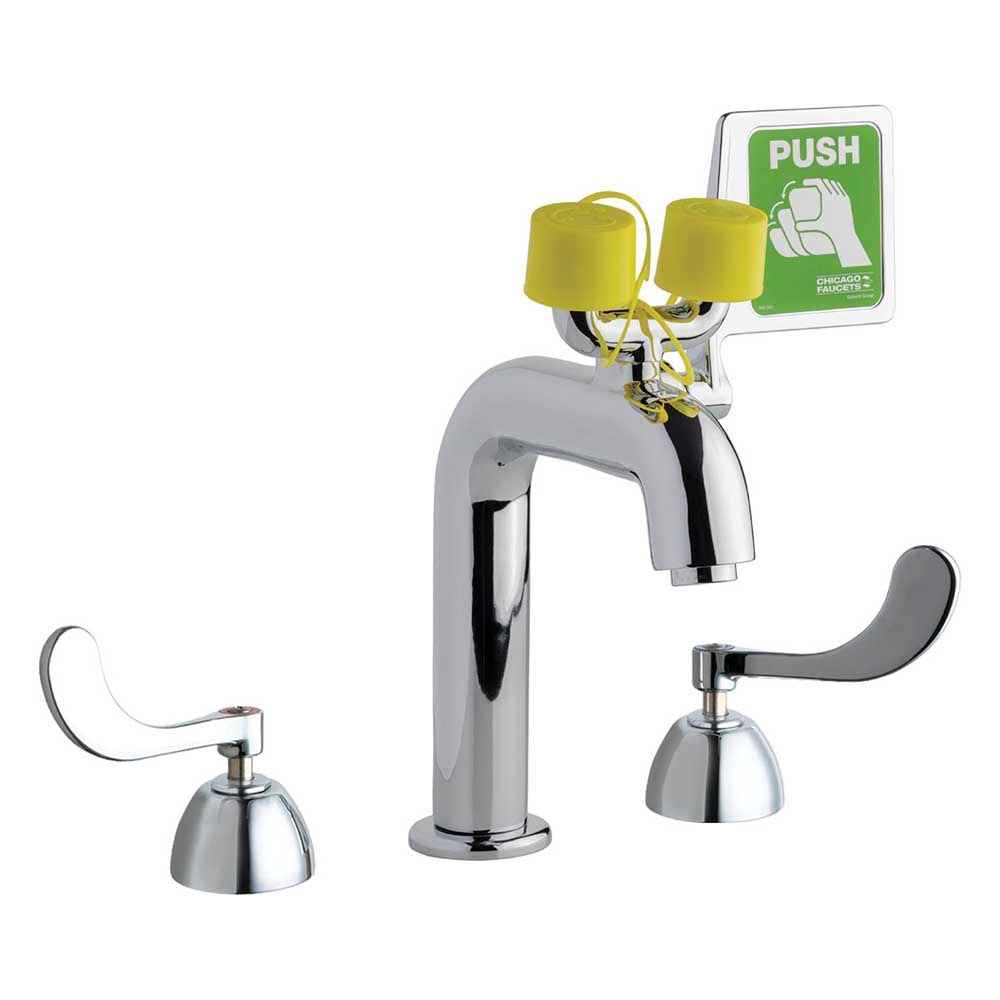

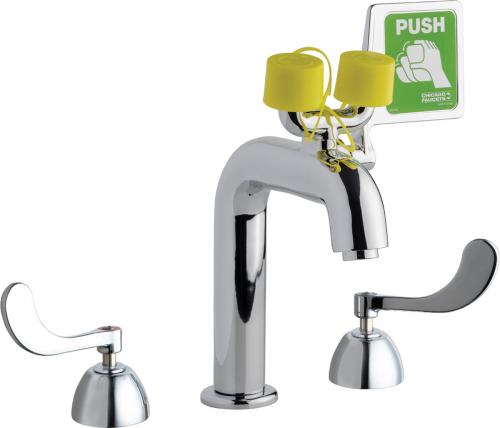

Chicago Faucets 8452-E64VPABCP Dual-handle Safety Eyewash Faucet Fitting 1.0 GPM

Product Description

The CHICAGO FAUCETS 8452-E64VPABCP is a dual-handle safety eyewash/faucet fitting. It features a pressure compensating laminar flow non-aerating outlet of 1.0 GPM and 4" wristblade handles. Designed with Quaturn compression operating cartridges for both right and left-hand operation, it ensures durability and meets ANSI/ISEA Z358.1 standards.

• Vandal Proof Pressure compensating laminar flow non-aerating outlet 1.0 GPM
• Vandal Proof 4" wristblade handle
• Quaturn compression operating cartridge, right-hand

Product Highlights

This deck-mounted faucet/eyewash unit combines safety and efficiency for laboratory, healthcare, and industrial environments.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 8452-E64VPABCP

Technical Specifications

• Pressure compensating non-aerating laminar outlet: 1.0 GPM (E64VPJKABCP)
• 4" Wristblade handle (pair): (317-PRJKCP)
• Quaturn compression operating cartridge, right-hand: (377-XTRHJKABNF)
• Quaturn compression operating cartridge, left-hand: (377-XTLHJKABNF)
• Eyewash outlet: 3.3 GPM laminar, non-aerated at 50 PSI
• Recommended for: 8" installation
• Compression Inlet: 3/8 in
• Handles include: color-coded index
• Mounting Type: FAUCET
• Operation Type: Push Handle
• Specifications Met: ANSI/ISEA Z358.1
• Color: Chrome
• Flow Rate: 1.0 gpm
• Manufacturer: Chicago Faucet
• Manufacturer #: 8452-E64VPABCP
• Additional Information: Compression Connection, 20 to 125 psi Pressure Rating, 40 to 140 deg F Temperature Rating, Polished Chrome Finish
• Connection Size: 3/8 in
• Series: 8400 Series
• Operating Temperature: 40 to 140 F
• Pressure: 20 psi to 125 psi
• Valve Size: 3/8 Inch
