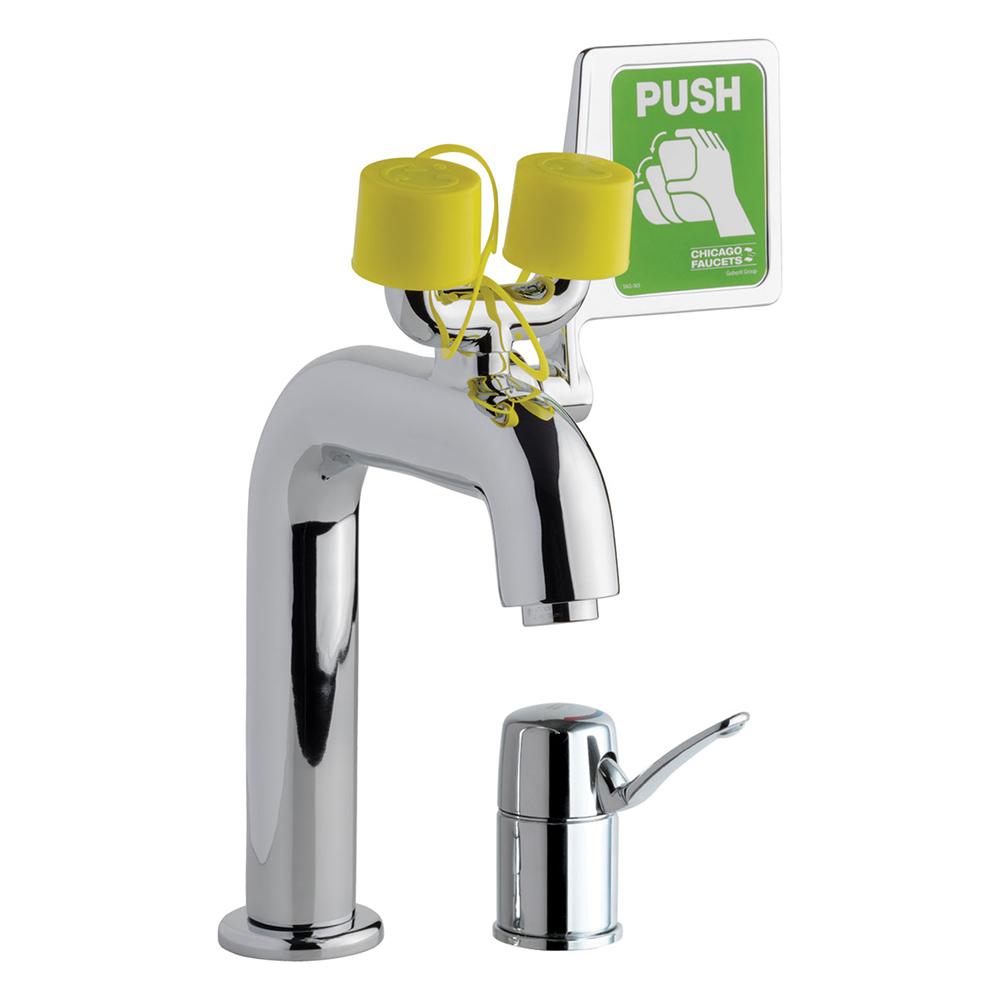

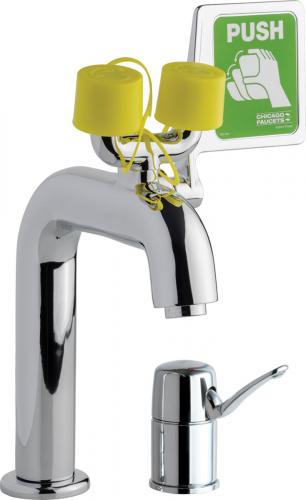

Chicago Faucets 8451-ABCP Single-handle Emergency Eyewash with Faucet 2.2 GPM

Product Description

The CHICAGO FAUCETS 8451-ABCP is a single-handle emergency eyewash with faucet. It features a pressure compensating Softflo aerator, a 2-3/4" lever handle, and a ceramic operating cartridge with volume control and hot water limit stop. The eyewash outlet dispenses a laminar, non-aerated flow at 3.3 GPM at 50 PSI.

• Pressure compensating Softflo aerator
• Ceramic operating cartridge with volume control and hot water limit stop
• 3/8" Compression inlet

Product Highlights

This single-handle safety eyewash/faucet fitting is ideal for laboratories, healthcare facilities, and industrial settings.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 8451-ABCP

Technical Specifications

• Handle: 2-3/4" Lever handle
• Cartridge: Ceramic operating cartridge with volume control and hot water limit stop
• Eyewash outlet: 3.3 GPM laminar, non-aerated at 50 PSI
• Inlet: 3/8" Compression inlet
• Finish: Polished chrome
• Flow Rate: 2.2 - 3.3 GPM
• Installation Type: Deck Mounted
• Material: Brass
• Number of Spray Heads: 2 Spray Heads
• Type: Eye Wash Stations, Faucets
• Water Inlet Size: 3/8 Inches
• Operating Temperature: 40 to 140 F, 50 to 90 F
• Pressure: 20 psi to 125 psi, 22 psi to 116 psi
• Valve Size: 3/8 Inch
• Length: 6 1/8 Inches
• Height: 11 1/2 Inches
