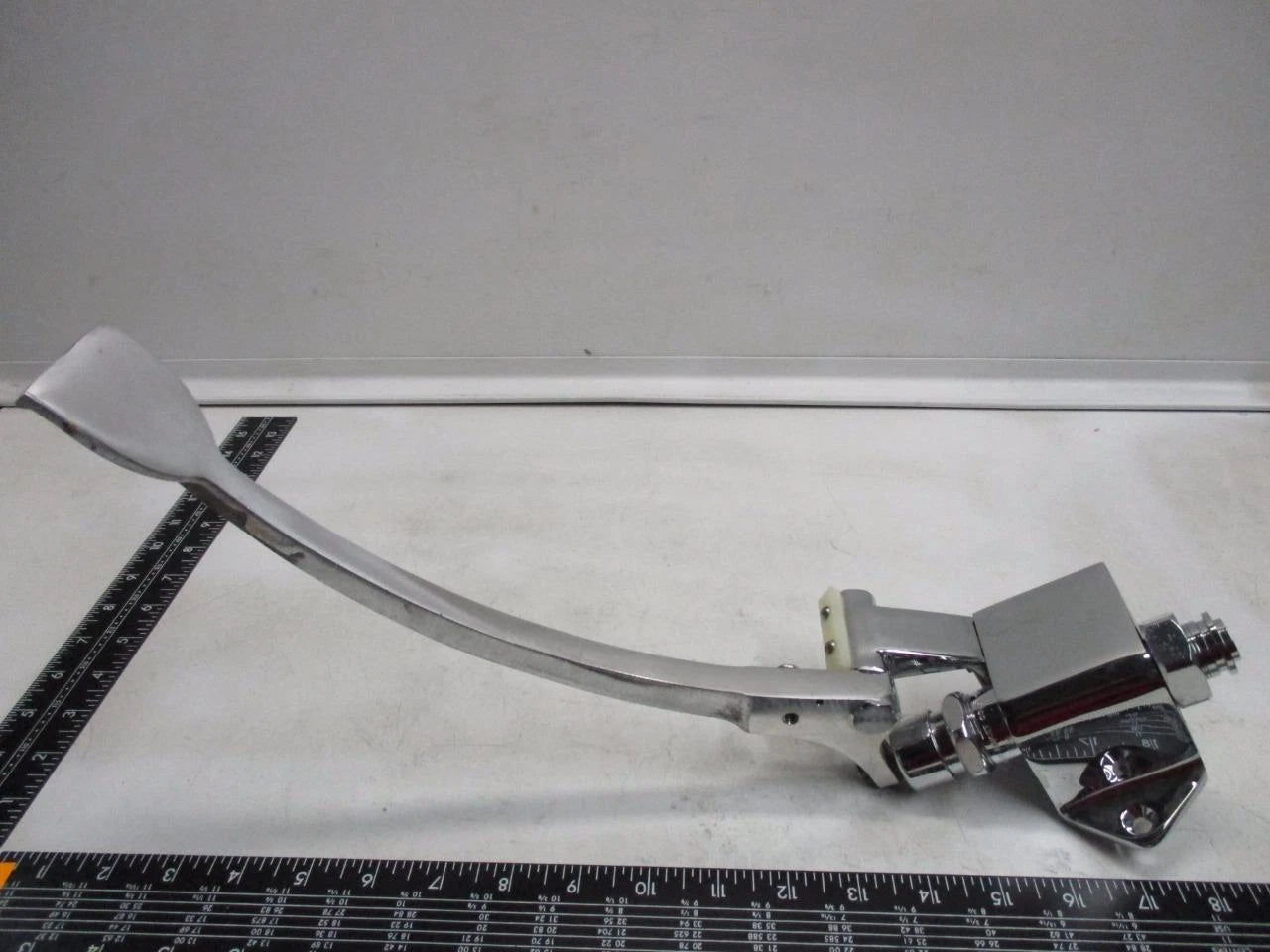

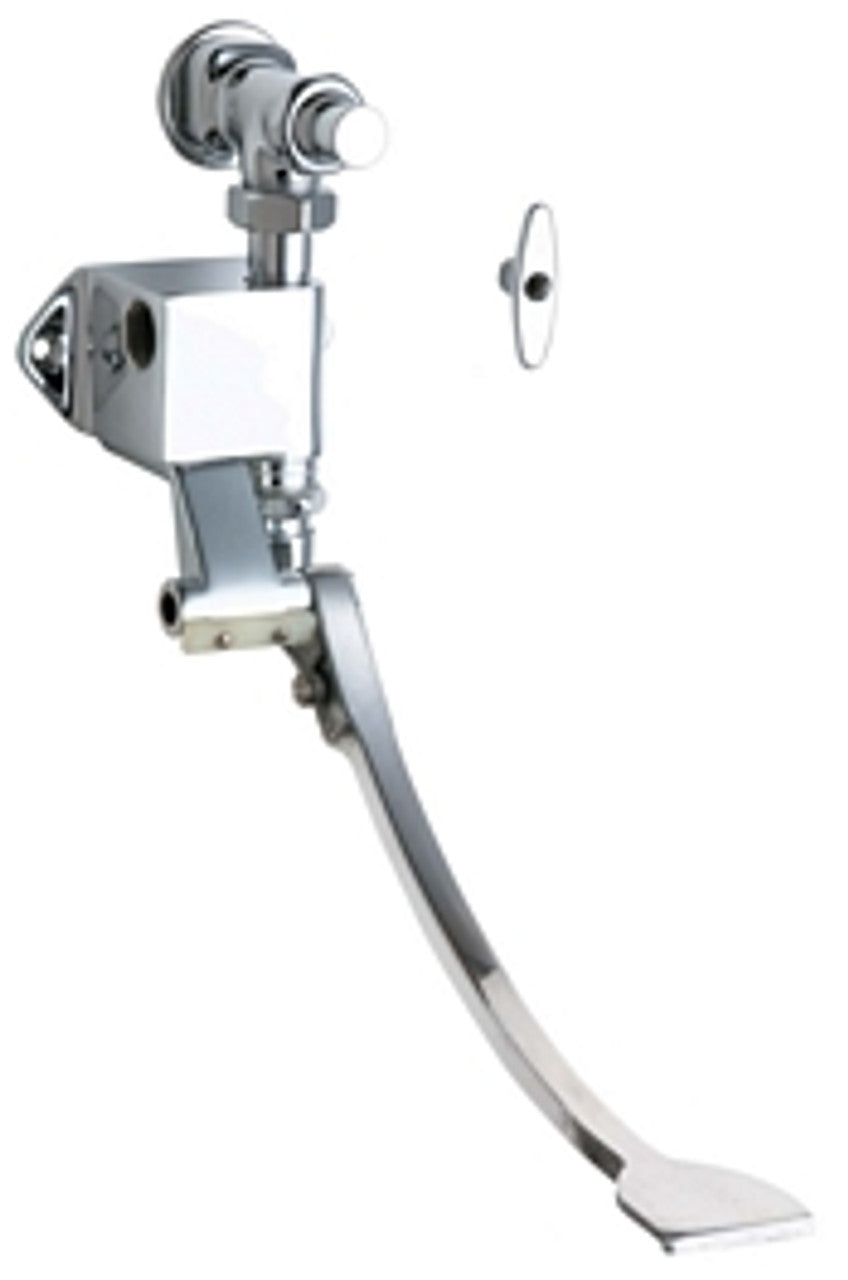

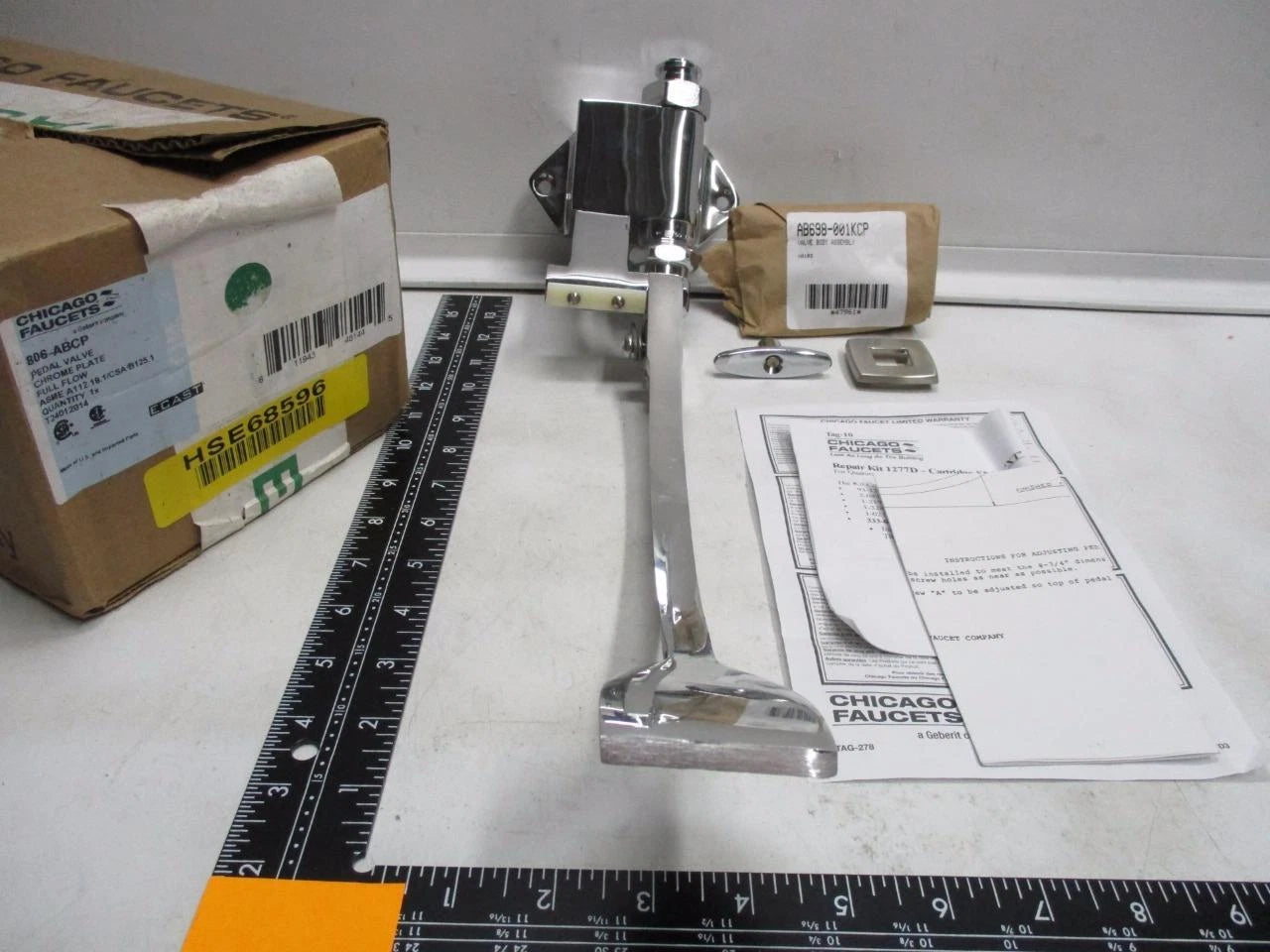

Chicago Faucets 806-ABCP Single Supply Pedal Box with Extended Pedal

Product Description

The Chicago Faucets 806-ABCP is a single supply pedal box designed for foot or knee operation. It includes an extended pedal and a NAIAD metering cartridge for quick closure. The valve features a locking mechanism that keeps the pedals elevated. It has a half inch NPT female thread inlet and outlet. The product is constructed with ECAST materials, ensuring lower lead content.

• Features NAIAD metering cartridge for fast cycle time closure.
• Equipped with 1/2 inch NPT female thread inlet and outlet.
• Locking feature secures pedals in a raised position.

Product Highlights

This pedal box is ideal for installations requiring sanitary foot or knee operation.

Product Information

Standard Information

• Manufacturer: Chicago
• Model: 806-ABCP

Technical Specifications

• Inlet: 1/2 inch NPT female thread inlet
• Outlet: 1/2 inch NPT female thread outlet
• Finish: Polished chrome
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140 degrees Fahrenheit
• Water Connection: 1/2 inch
• Water Pressure (Max): 125 PSI
• Water Pressure (Min): 20 PSI
