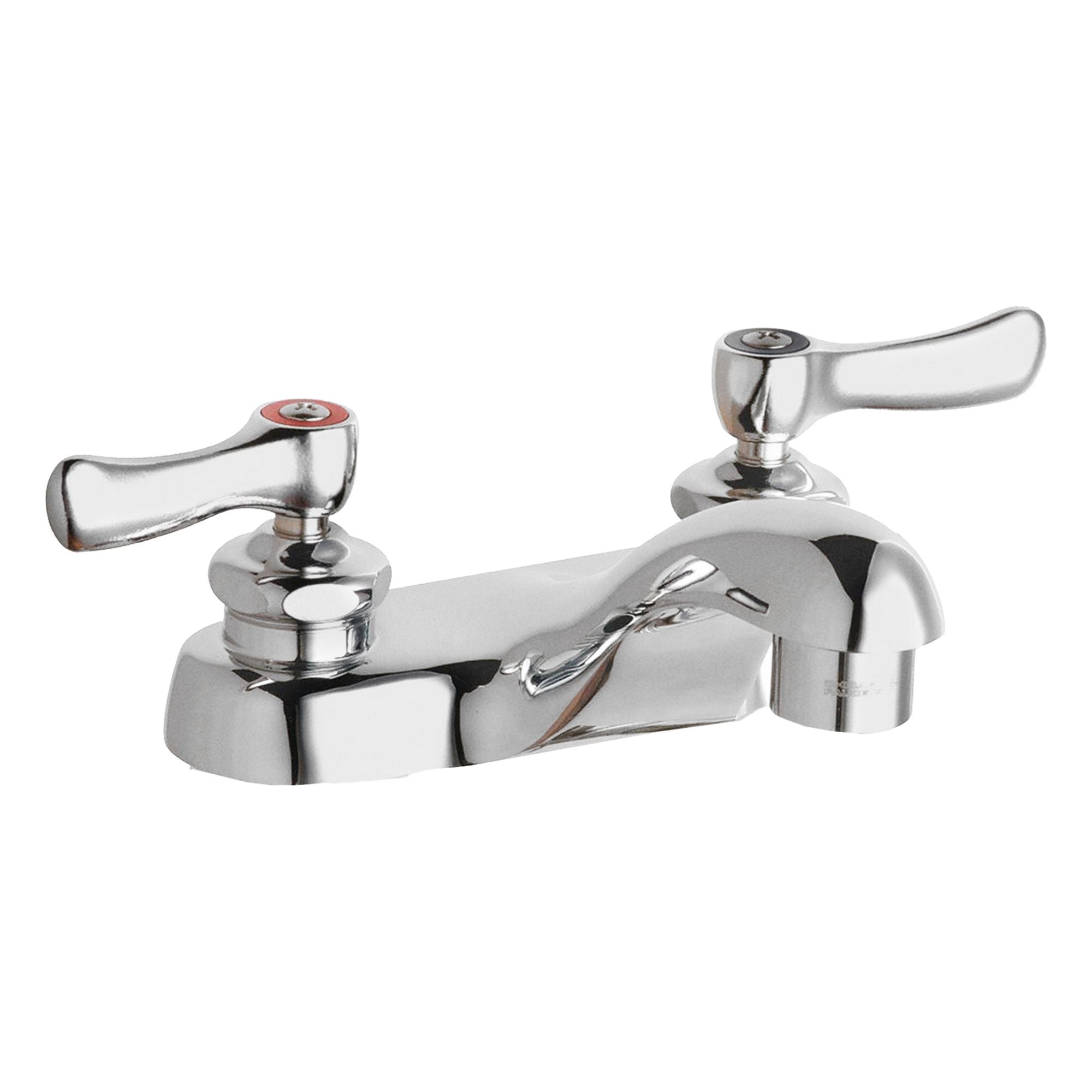

Chicago Faucets 802-VE66XKABCP Deck-mounted manual faucet 4 inches centers (1-099XKJKABNF)

Product Description

Chicago Faucets 802-VE66XKABCP is a deck-mounted manual faucet with 4" fixed centers designed for commercial sinks and washbasins. The faucet features a 0.5 GPM pressure compensating laminar non-aerating outlet, a 4" integral cast brass spout, and ceramic 1/4-turn operating cartridges. It includes 2-3/8" lever handles, 1/2" NPSM supply inlets with coupling nut for 3/8" or 1/2" flexible riser, and a polished chrome cast brass body.

• 0.5 GPM pressure compensating laminar non-aerating outlet; vandal-proof options noted
• Ceramic 1/4-turn operating cartridges; replacement cartridges: 1-099XKJKABNF, 1-100XKJKABNF
• Deck-mounted, 4" fixed centers; 1/2" NPSM supply inlets with coupling nut for 3/8" or 1/2" flexible riser

Product Highlights

Cast brass body, polished chrome finish, 4" center-to-center spout, 2-3/8" lever handles, ADA and industry standard listings

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 802-VE66XKABCP
• Country of Origin: USA

Technical Specifications

• Brand: Chicago Faucets
• Manufacturer Part Number: 802-VE66XKABCP
• Mounting Type: Deck-mounted
• Mounting Centers: 4" fixed centers
• Spout: 4" center-to-center integral cast brass spout
• Spout Height: 2-3/4 in
• Spout Reach: 4 in
• Spout Outlet Height: 1-5/8 in
• Flow Rate: 0.5 GPM (1.9 L/min)
• Outlet Type: Pressure compensating laminar non-aerating
• Body Material: Cast brass
• Finish: Polished chrome
• Handles: 2-3/8" lever handles (pair); vandal-proof lever with eight-point tapered broach
• Number of Handles: Double
• Cartridge Type: Ceramic 1/4-turn operating cartridge
• Replacement Cartridges: 1-099XKJKABNF; 1-100XKJKABNF
• Supply Inlets: 1/2" NPSM supply inlets with coupling nut for 3/8" or 1/2" flexible riser
• Number of Mounting Holes: 2
• Weight: 4.75 lb
• Max Pressure: 125 psi
• Temperature Range: 40 °F to 140 °F
• Includes: Mounting hardware
• Application: Commercial; bathroom and sink use
• Standards and Certifications: ASME A112.18.1/CSA B125.1; ADA ANSI/ICC A117.1; NSF/ANSI/CAN 61; NSF/ANSI/CAN 372 Low Lead Content; CEC compliance
• Country of Origin: United States
• UPC: 611943114534
