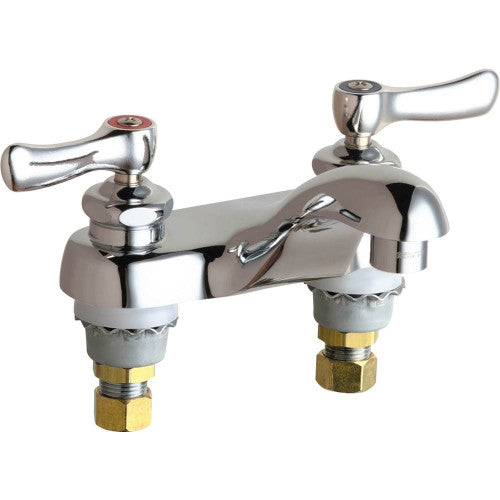

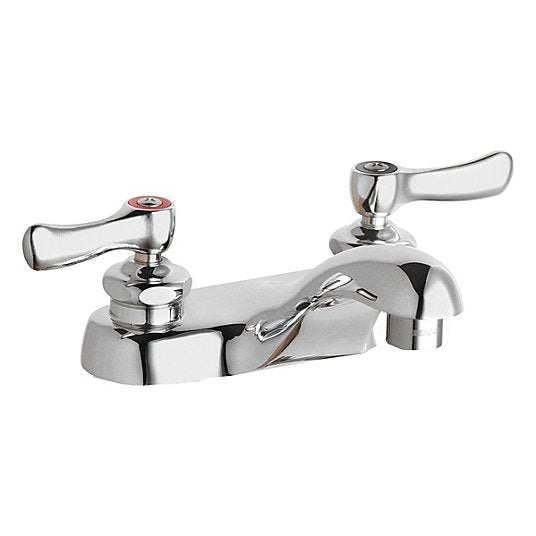

Chicago Faucets 802-VE66ABCP Deck-mounted manual faucet 0.5 GPM

Product Description

The CHICAGO FAUCETS 802-VE66ABCP is a deck-mounted manual faucet with 4" centers. It features ECAST construction with equal to or less than 0.25% lead content. Designed for commercial bathroom applications, this faucet combines durability with reliable performance. The faucet is equipped with a Quaturn compression operating cartridge.

• Features a 0.5 GPM vandal proof pressure compensating laminar non-aerating outlet
• Includes a vandal proof 2-3/8" lever handle with eight-point tapered broach
• Equipped with 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser

Product Highlights

This centerset handle bathroom faucet combines a spout with handles on a single base to control water flow. It installs on bathroom sinks and washbasins with multiple holes.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 802-VE66ABCP
• Country of Origin: Domestic

Technical Specifications

• Pressure compensating laminar non-aerating outlet: 0.5 GPM (E66VPJKABCP)
• 2-3/8" Lever handle (pair): (390-PRJKCP)
• Quaturn compression operating cartridge, right-hand: (1-099XTJKABNF)
• Quaturn compression operating cartridge, left-hand: (1-100XTJKABNF)
• Fixed Centers: 4"
• Supply Inlets: 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Weight: 3.824 lb
• Package Dimensions: 11.88 × 6.56 × 4.12 in
• Package Quantity: 1
• Centers: 4" Fixed Centers
• Spout: 4" Center to Center Integral Cast Brass Spout
• Outlet: 0.5 GPM (1.9 L/min) Vandal Proof Pressure Compensating Laminar Non-Aerating Outlet
• Handle: Vandal Proof 2-3/8" Lever Handle, Eight-Point Tapered Broach
• Cartridge: Quaturn Compression Operating Cartridge
• Inlets: 1/2" NPSM Supply Inlets and Coupling Nut for 3/8" or 1/2" Flexible Riser
• Warranty: Lifetime Limited Faucet Warranty, 5-Year Limited Cartridge Warranty, 1-Year Limited Finish Warranty
• Brand: Chicago Faucet
• Center Distance: 4 in
• Connection Size: 1/2 in
• Connection Type: NPSM
• Domestic/Import: Domestic
• Flow Rate: 0.5 gpm
• Handle Type: Lever
• Maximum Deck Thickness: 1-1/2 in
• Mounting Type: Deck
• Spout Height: 1-5/8 in
• Spout Reach: 4 in
• Spout Type: Integral
• Spray Pattern: Non-Aerating
• Valve/Cartridge Type: Quaturn Compression
• Style: Rigid
• Series: 802
• Product Type: Faucet
• Operation Method: Manual
• Mounting Location: Deck
• Flow Type: Laminar
• Body Material: Cast Brass
• Color/Finish: Polished Chrome
• Number of Mounting Holes: 2
• Number of Handles: Double
• Handle Material: Cast Brass
• Spout Shape: Arc
• Spout Style: Fixed
• Spout Outlet Height: 1-5/8 in
• Water Supply Type: Hot and Cold
• Temperature Control: Non-Adjustable
• For Water Temperature: Hot/Cold
• Water Inlet Connection Type: NPSM
• Inlet Connection Gender: Male
• Overall Width: 6 in
• Max. Installation Surface Thickness: 1-1/2 in
• Min. Mounting Hole Spacing: 4 in
• Max. Mounting Hole Spacing: 4 in
• Min. For Mounting Hole Diameter: 1-1/8 in
• Max. For Mounting Hole Diameter: 1-3/8 in
• Index Style: Color
• Max. Pressure: 125 psi
• Min. Temperature: 40 °F
• Max. Temperature: 140 °F
• Includes: Mounting Hardware
• Includes Drain: Drain Not Included
• For Location: Bathroom
• Application: Commercial
• Replacement Cartridge Mfr. Part Number: 1-099XTJKABNF; 1-100XTJKABNF
• Replacement Cartridge Grainger Item Number: 5UTV5; 5UTV6
• Manufacturers Warranty Length: 1 yr Limited; 5 yr Limited; Lifetime Limited
• Vandal Resistant Features: Vandal-Resistant Handle; Vandal-Resistant Outlet
• ADA Compliance: ADA Compliant
• CEC Compliance: CEC Compliant
• Standards: AB1953; ANSI A117.1; ASME A112.18.1/CSA B125.1; BAA Compliant; NSF/ANSI/CAN 372 Low Lead Content; NSF/ANSI/CAN 61: Q ≤ 1
• Manufacturer Part Number: 802-VE66ABCP
• UNSPSC: 40141702
