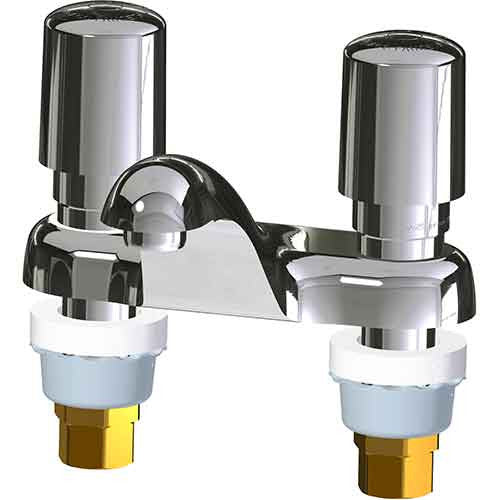

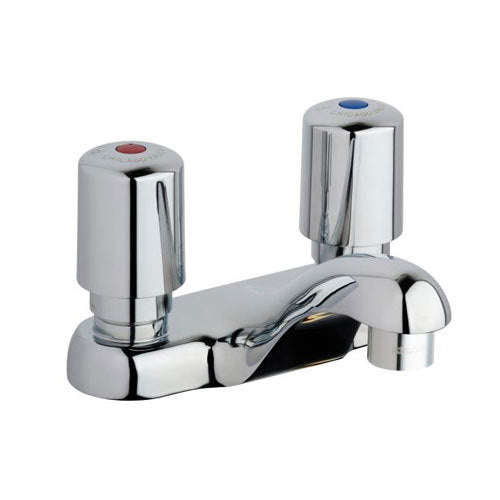

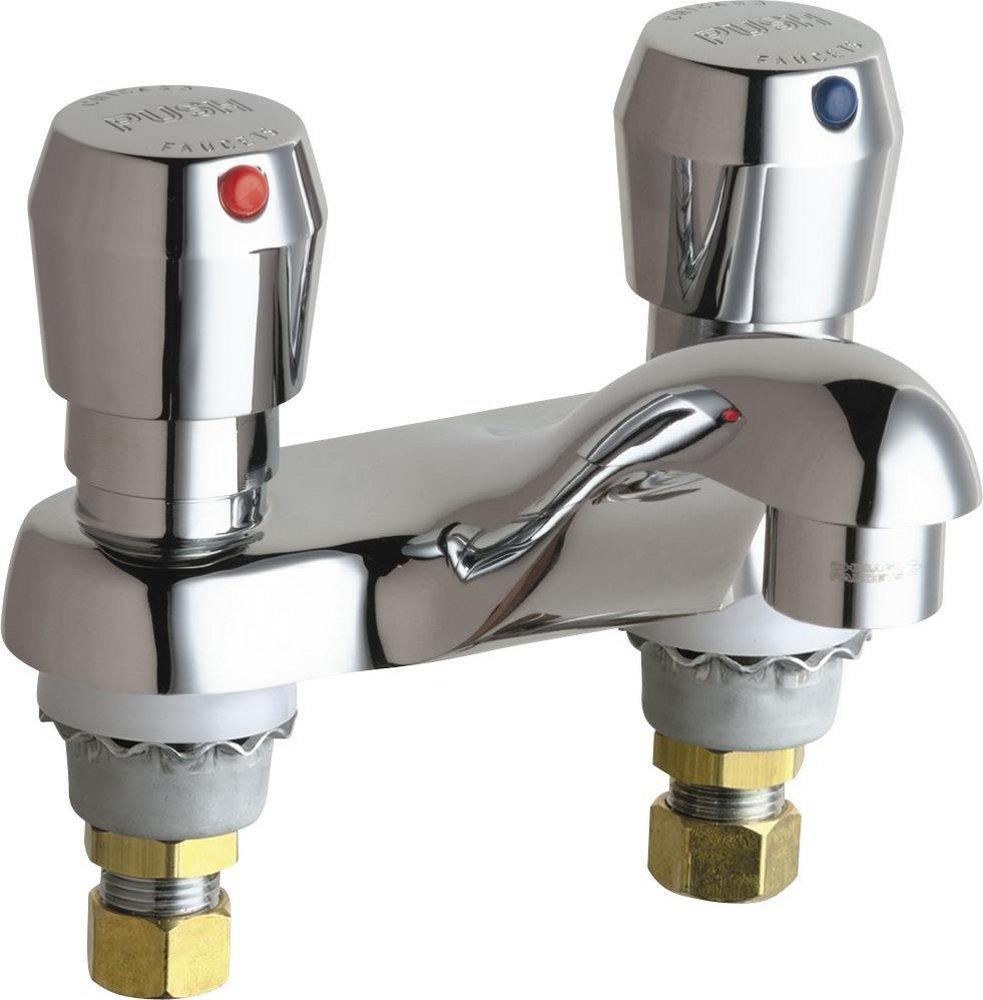

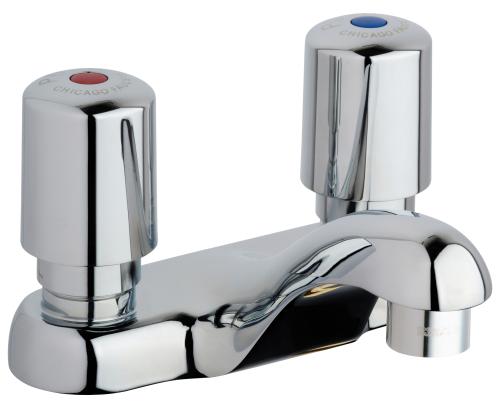

Chicago Faucets 802-VE64-765ABCP Series Deck-mounted Metering Faucet with 4 inches Centers

Product Description

The CHICAGO FAUCETS 802-VE64-765ABCP is a deck-mounted metering faucet with 4" fixed centers. It features a pressure compensating non-aerating laminar outlet with a flow rate of 1.0 GPM. Designed with a 2" MVP metering push handle, this faucet ensures durability and efficient water usage.

• Features 4" fixed centers
• Equipped with a 2" MVP metering push handle
• Includes a pressure-compensating, non-aerating laminar outlet

Product Highlights

This metering faucet is ideal for commercial applications requiring durability and water conservation.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 802-VE64-765ABCP

Technical Specifications

• Pressure compensating non-aerating laminar outlet: 1.0 GPM (E64VPJKABCP)
• Maximum: 0.25 gal/cycle (0.95 L/cycle)
• Handle: 2" MVP metering push handle (pair) (765-PRJKCP)
• Cartridge: MVP metering cartridge and actuator (667-780KJKABNF)
• Centers: 4" fixed centers
• Inlets: 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Brand: Chicago Faucet
• Manufacturers: Chicago Faucet
• MPN: CF802-VE64-765ABCP
• ADA Compliant: Yes
• ANSI: ANSI 372, ANSI 61, ANSI A117.1
• ASME: ASME A112.18.1
• Built-in Stops: No
• CEC Compliant: For Sale in CA
• CSA Certified: CSA B125.1
• Cartridge Type: Metering Adjustable Self Closing
• Collection: 802 Series
• Color Finish Category: Chromes
• Color Finish Name: Chrome Plated
• Deck Plate Included: No
• Faucet Center Size: 4 in
• Faucet Connection Size: 1/2 in
• Faucet Material: Brass
• Faucet Mount: Deck Mount
• Flow Rate: 1 gpm
• GSA Approved: No
• Handle Material: Metal
• Handle Type: Metering
• IAPMO Listed: No
• Institutional Faucet Type: Service
• Lead Law Compliance Level: Lead Free and Lead Leaching Compliant
• Lead Law Compliant: Yes
• NSF: NSF 372, NSF 61
• NSF Certified: Yes
• Number of Handles: Two Handle
• Number of Holes: 2 Hole
• Proposition 65: WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Scald Guard: No
• Spout Height: 1-5/8
• Spout Reach: 4
• UL Listed: No
• UPC: 611943112981
• Vacuum Breaker: No
• Vandal Resistant: Yes
• WaterSense Labeled: Yes
• Cycle: 0.25 gal/cycle (0.95 L/cycle) max.
• Handles: 2" MVP metering push handle (pair) (765-PRJKCP)
