Chicago Faucets 802-ve2805-765abcp Metering Faucet 4 in

Product Description

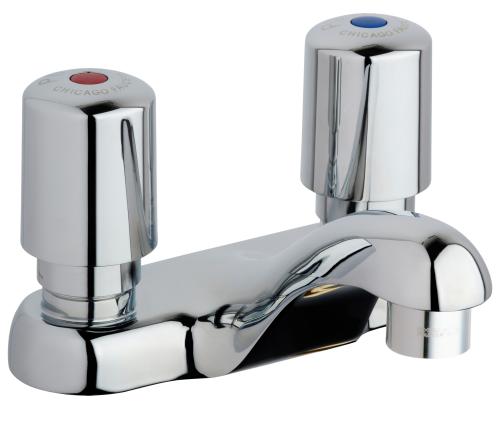

The CHICAGO FAUCETS 802-ve2805-765abcp is a deck-mounted metering faucet built for commercial and institutional restroom applications. It features a pressure-compensating Econo-Flo non-aerating laminar spray outlet rated at 0.5 GPM and a maximum cycle volume of 0.25 gallons per cycle (0.95 liters per cycle). The faucet ships as a complete assembly including a 2-inch MVP metering push handle pair, MVP metering cartridge, and actuator in a polished chrome finish. Licensed plumbers install this unit in facilities where timed water delivery and water conservation compliance are required.

This metering faucet is designed for deck-mounted installations with fixed 4-inch centers, making it suitable for standard commercial lavatory sinks in schools, healthcare facilities, airports, and other high-traffic public restrooms. Supply connections are made via 1/2-inch NPSM supply inlets with coupling nuts that accept either 3/8-inch or 1/2-inch flexible risers, accommodating common riser configurations found in commercial rough-in conditions.

Key Features

• Pressure-compensating Econo-Flo non-aerating laminar spray at 0.5 GPM for consistent flow across variable supply pressures
• Timed metering operation with a maximum 0.25 gallon per cycle output to support water conservation requirements
• Includes 2-inch MVP metering push handle pair for straightforward, tool-free user operation
• MVP metering cartridge and actuator included for complete out-of-box installation readiness
• Fixed 4-inch centers fit standard commercial deck-mount lavatory openings
• 1/2-inch NPSM supply inlets accept 3/8-inch or 1/2-inch flexible risers for installation flexibility
• Polished chrome finish suited for commercial restroom environments

Compatibility

Designed as an OEM-style deck-mounted metering faucet assembly for commercial lavatories with 4-inch fixed center configurations. Econo-Flo spray outlet references component E2805JKABCP and MVP metering push handle references component 765-PRJKCP as noted in supplier specifications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve line pressure before beginning any connections. Do not overtighten the coupling nut on the flexible riser connections, as the NPSM thread is a straight mechanical thread requiring only hand-tight plus a modest turn with a wrench. Verify supply pressure is within the faucet rated operating range before returning the system to service.

Technical Specifications

• Flow Rate: 0.5 GPM
• Max Cycle Volume: 0.25 gallons per cycle (0.95 liters per cycle)
• Center Spacing: 4 inches fixed
• Handle Type: 2-inch MVP metering push handle (pair)
• Supply Inlet Thread: 1/2-inch NPSM
• Riser Compatibility: 3/8-inch or 1/2-inch flexible riser
• Finish: Polished Chrome
• Weight: 4.75 pounds
• Package Dimensions: 11.88 inches x 6.56 inches x 4.12 inches

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 802-ve2805-765abcp
