Chicago Faucets 802-E70ABCP Low Arc Bathroom Sink Faucet 0.5 GPM replacement 1-099XTJKABNF

Product Description

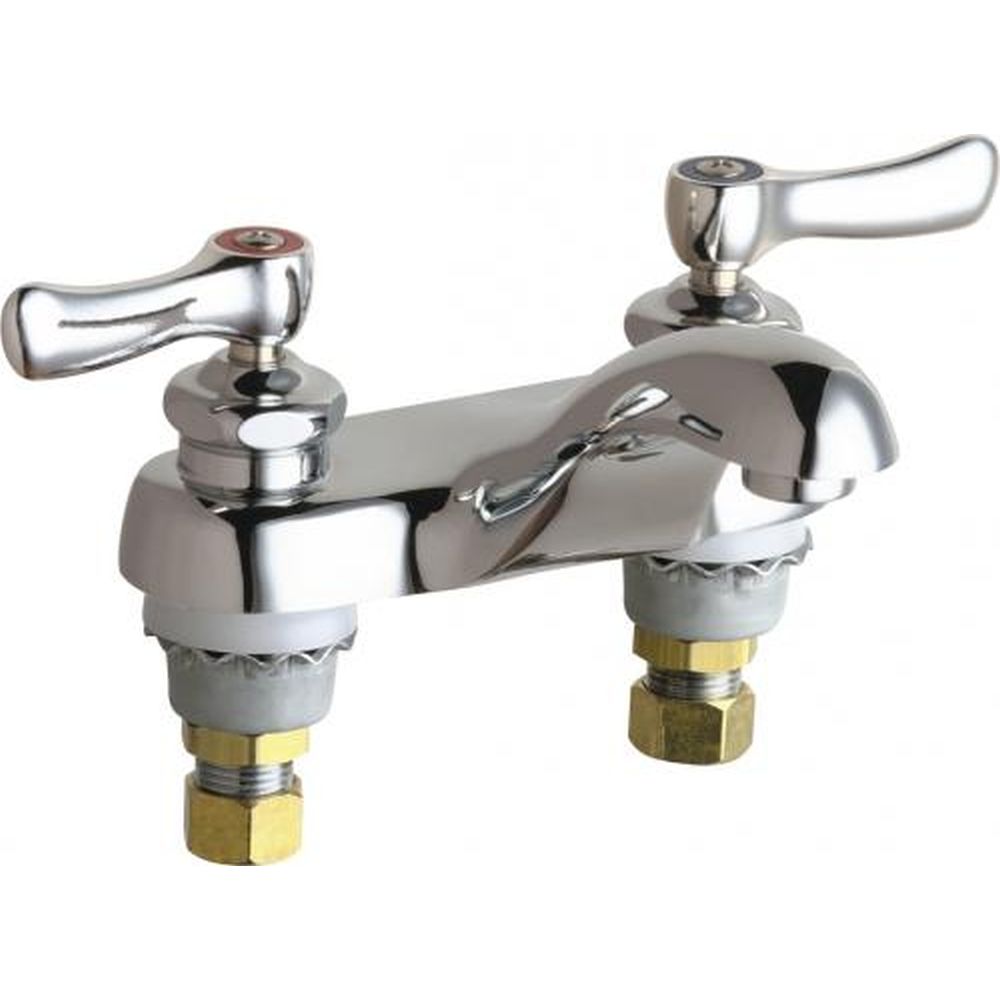

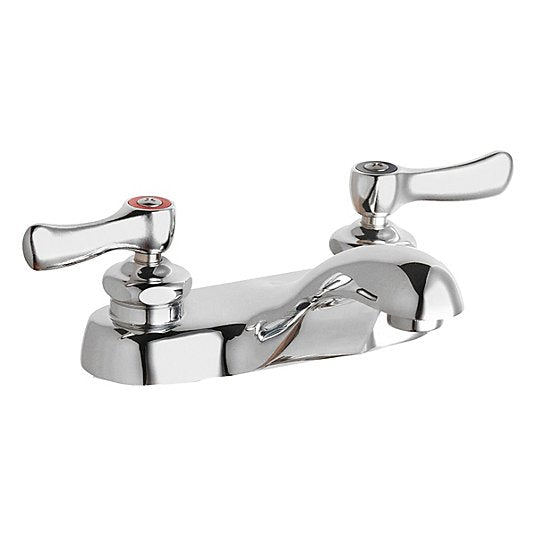

The CHICAGO FAUCETS 802-E70ABCP is a chrome, low arc bathroom sink faucet with manual faucet activation and a 0.5 GPM flow rate. Designed with a cast brass spout, this faucet combines functionality with style. It boasts 4" fixed centers that allow it to match the centers on your sink or mounting surface with ease.

• Durable, cast brass construction and polished chrome finish
• Pressure compensating non-aerating laminar flow outlet releases water at 0.5 GPM
• 4” fixed centers that allow it to match the centers on your sink or mounting surface with ease

Product Highlights

This deck-mounted faucet is easy to install and features vandal-proof 2 3/8” lever handles are color coded for easy identification.

Product Information

Standard Information

• Brand: CHICAGO FAUCETS
• Manufacturer Part Number: 802-E70ABCP
• Country of Origin: USA

Technical Specifications

• Pressure compensating non-aerating laminar flow outlet: 0.5 GPM (E70JKABCP)
• 2-3/8" Lever handle (pair): (390-PRJKCP)
• Quaturn compression operating cartridge, right-hand: (1-099XTJKABNF)
• Quaturn compression operating cartridge, left-hand: (1-100XTJKABNF)
• Centers: 4" fixed centers
• Inlets: 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser
• Finish: Polished chrome
• Package Quantity: 1
• Manufacturer (Brand): Chicago Faucets
• Manufacturer Item Number: 802-E70ABCP
• UPC: 611943114442
• Handle Length: 2 3/8 Inches
• Spout Length: 4 Inches
• Faucet Width: 9 Inches
• Faucet Height: 2 5/8 Inches
• Cartridge Type: Compression
• Faucet Centers: 4 Inches
• Features: ADA Compliant
• Flow Rate: 0.5 GPM
• Handle Type: Lever
• Installation Type: Deck Mounted
• Material: Brass
• Mounting Style: Deck Mounted
• Mounting Type: Workboard
• Pressure Rating: 20 - 125 PSI
• Rough In: 4 Inches
• Spout Clearance: 1 5/8 Inches
• Spout Type: Cast
• Sprayer: Without Sprayer
• Temperature Rating: 40 - 140 Degrees F
• Type: Faucets
• Water Inlet Size: 1/2 Inches
• Brand: CHICAGO FAUCETS
• Series: 802
• Product Type: Faucet
• Operation Method: Manual
• Mounting Location: Deck
• Flow Type: Laminar
• Body Material: Cast Brass
• Color/Finish: Polished Chrome
• Number of Mounting Holes: 2
• Number of Handles: Double
• Handle Material: Cast Brass
• Spout Shape: Arc
• Spout Style: Fixed
• Spout Height: 2-3/4 in
• Spout Reach: 4 in
• Spout Outlet Height: 1-5/8 in
• Water Supply Type: Hot and Cold
• Temperature Control: Non-Adjustable
• For Water Temperature: Hot/Cold
• Water Inlet Connection Type: NPSM
• Inlet Connection Gender: Male
• Overall Width: 6 in
• Max. Installation Surface Thickness: 1-1/2 in
• Min. Mounting Hole Spacing: 4 in
• Max. Mounting Hole Spacing: 4 in
• Min. For Mounting Hole Diameter: 1-1/8 in
• Max. For Mounting Hole Diameter: 1-3/8 in
• Index Style: Color
• Max. Pressure: 125 psi
• Min. Temperature: 40 F
• Max. Temperature: 140 F
• Includes: Mounting Hardware
• Includes Drain: Drain Not Included
• For Location: Bathroom
• Application: Commercial
• Replacement Cartridge Mfr. Part Number: 1-099XTJKABNF; 1-100XTJKABNF
• Vandal Resistant Features: Vandal-Resistant Handle
• ADA Compliance: ADA Compliant
• CEC Compliance: CEC Compliant
• Standards: AB1953; ANSI A117.1; ASME A112.18.1/CSA B125.1; NSF 372; NSF 61/9; BAA Compliant
