Chicago Faucets 802-665CP Deck-Mounted Metering Faucet

Product Description

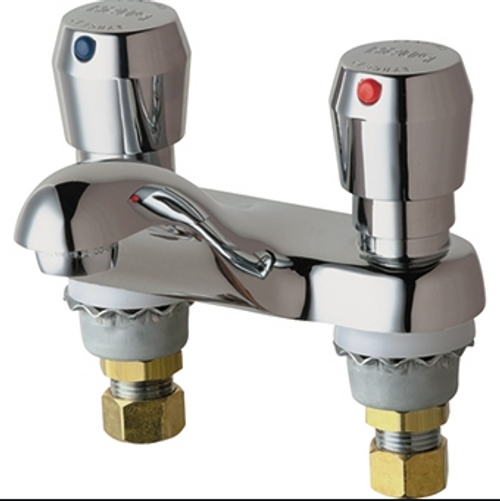

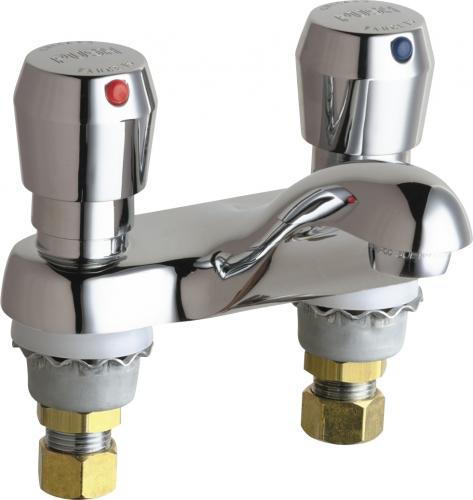

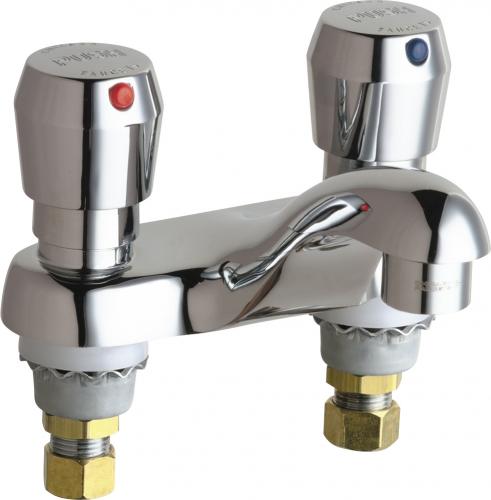

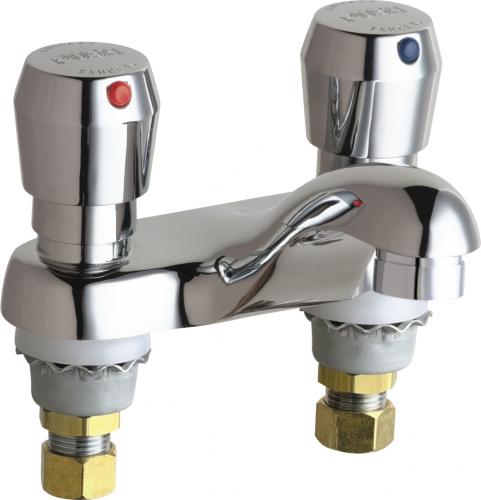

The Chicago Faucets 802-665CP is a deck-mounted metering faucet ideal for lavatory use. The faucet has a centerset configuration with four-inch fixed centers. It features a push-button actuator for ease of use and is built with a durable MVP metering cartridge.

• Constructed from solid brass with polished chrome finish
• Includes 1/2 NPSM supply inlets with coupling nuts
• Flow rate of 2.2 gallons per minute

Product Highlights

Perfect for high-traffic washrooms, this faucet conserves water while providing reliable performance.

Product Information

Standard Information

• Brand: Chicago Faucets
• Mounting Configuration: Centerset

Technical Specifications

• Faucet Centers: 4 inches
• Faucet Hole Size: 0.938 inches
• Overall Height: 2.75 inches
• Spout Height: 1.625 inches
• Spout Reach: 4 inches
• Flow Rate: 2.2 GPM
• Connection Size: 1/2 inches
• Max Deck Thickness: 1.5 inches
• Rated Operating Pressure: 20-125 PSI
• Rated Operating Temperature: 40-140 degrees Fahrenheit
• Width: 6 inches
• Actuator Assembly: 665-190KJKABNF
• Metering Cartridge: 671-XJKABNF
• Aerator: E12JKCP
• Spray: E2805JKCP
• Package Quantity: 1
• Required Installation Holes: 3
